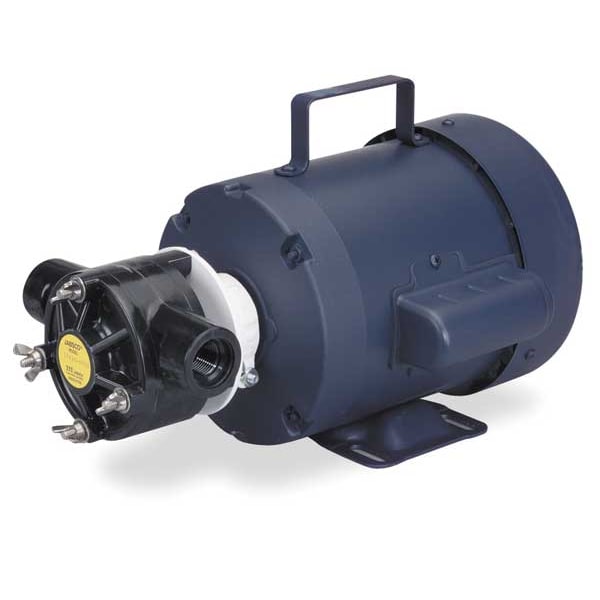

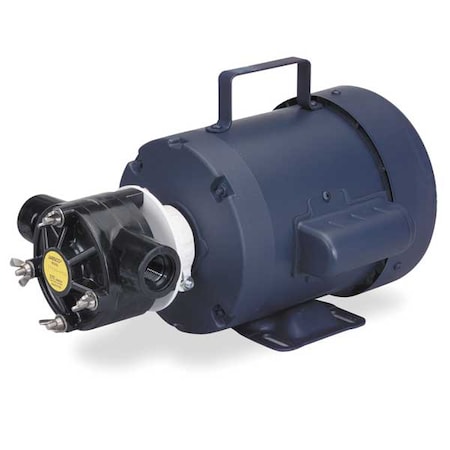

Pump, Flexible Impeller

JABSCO| Zoro #: G0830837| Mfr #: 17430-7000

$1,623.16 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0830837 Mfr #: 17430-7000
Item: PumpFunction: Fill and Empty Vats and Drums, Collect Spills and Waste
Application: For General Liquid Transfer, Circulation, Filtration, Processing, Filling and Pumping Pure SolutionsLength (In.): 14-5/16
Motor Type: TEFCInlet/Outlet (In.): 1/2 (F)NPT
Max. Pressure (PSI): 21HP: 1/2
Impeller Material: NitrileHeight (In.): 8-3/8
Housing Material: EpoxyGPM of Water @ 30 Ft. of Head: 9.0
GPM of Water @ 20 Ft. of Head: 10.2Width (In.): 9-11/16
GPM of Water @ 10 Ft. of Head: 11.3Max. SSU @ 1725 RPM: 2500
Type: FlexibleAmps: 8.2
Temp. Range (F): 50 to 180Voltage: 115
Suction Lift (Ft.): 12-15 Dry, 18-22 WetRPM: 170 - 3000
Max. Head (Ft.): 48NEMA Motor Frame: 56C
Country of Origin (subject to change): United Kingdom

Product Description

Pump, Flexible, 1/2 HP, Voltage 115, Amps 8.2, Inlet/Outlet (In.) 1/2 (F)NPT, NEMA Motor Frame 56C, Impeller Material Nitrile, Length (In.) 14-5/16, Width (In.) 9-11/16, Height (In.) 8-3/8, GPM of Water @ 10 Ft. of Head 11.3, GPM of Water @ 30 Ft. of Head 9.0, Max. Head (Ft.) 48, Max. Pressure (PSI) 21, Suction Lift (Ft.) 12-15 Dry, 18-22 Wet, Max. SSU @ 1725 RPM 2500, GPM of Water @ 20 Ft. of Head 10.2, Housing Material Epoxy, 170 - 3000 RPM, Motor Type TEFC, Temp. Range (F) 50 to 180
