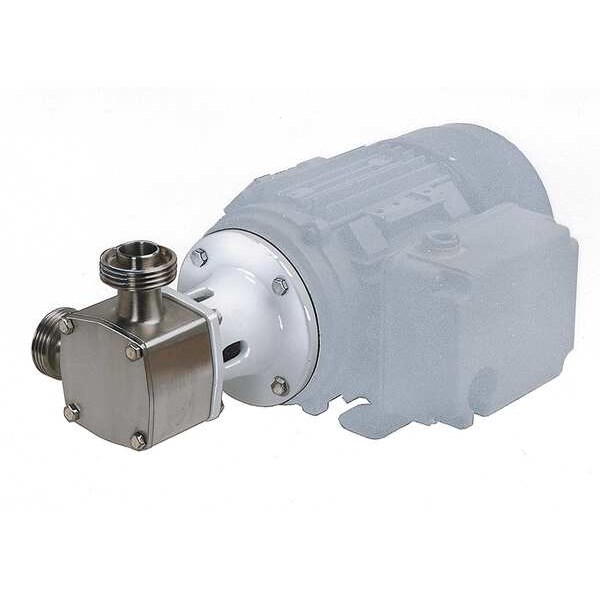

Pump, Flexible Impeller, 3/4 HP, 115V, 1 In

JABSCO| Zoro #: G1303391| Mfr #: 30550-4005

$2,894.81 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1303391 Mfr #: 30550-4005
Item: PumpFunction: Can be Direct Coupled or Belt Driven
Application: Suitable for Non Lubricating LiquidsMotor Type: Capacitor Start
Inlet/Outlet (In.): 1 ACMEGPM of Water @ 23 Ft. of Head: -
Max. Pressure (PSI): 15HP: 3/4
GPM of Water @ 0 Ft. of Head: 10.5Impeller Material: Neoprene
Height (In.): 8-11/16Characteristics: Can be Direct Coupled or Belt Driven
Housing Material: Stainless SteelGPM of Water @ 30 Ft. of Head: 8
GPM of Water @ 11 Ft. of Head: -Shaft Material: Stainless Steel
GPM of Water @ 20 Ft. of Head: -Max. Viscosity: 500
Self-Priming: YesWidth (In.): 8-7/8
GPM of Water @ 10 Ft. of Head: 9.5Seal: Carbon, Ceramic
Max. SSU @ 1725 RPM: 500Type: Flexible Impeller
Prime in Feet: 8-10 Dry PrimeAmps: 8.64
Temp. Range (F): 158Cord Length: -
Voltage: 115Suction Lift (Ft.): Dry 8 - 10 / Wet 18 - 22
Includes: -RPM: 1750
Max. Head (Ft.): 30GPM of Water @ 60 Ft. of Head: -
NEMA Motor Frame: 56CLength (In.): 16
GPM of Water @ 40 Ft. of Head: -Country of Origin (subject to change): Multiple

Product Description

Pump, Flexible Impeller, 3/4 HP, Voltage 115, Amps 8.64, Inlet/Outlet (In.) 1 ACME, NEMA Motor Frame 56C, GPM of Water @ 10 Ft. of Head 9.5, Max. Head 30 Ft., Max. Pressure 15 PSI, Suction Lift (Ft.) Dry 8 - 10 / Wet 18 - 22, 500 Max. SSU @ 1725 RPM
