This item is Discontinued.

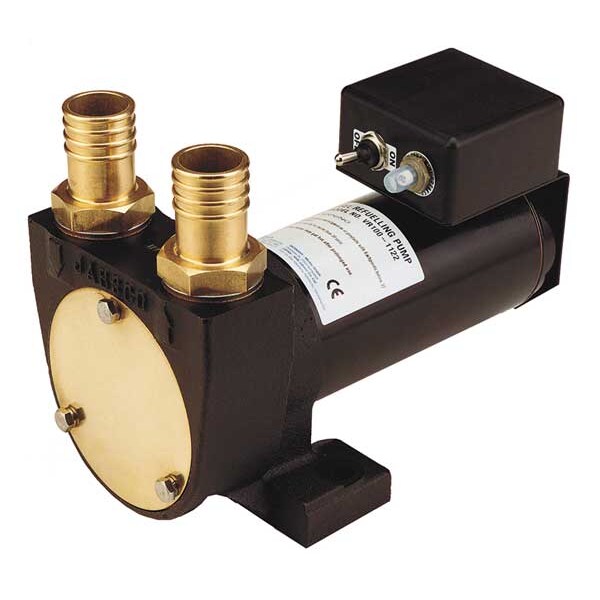

Jabsco Pump, Vane, Cast Iron, Inlet/Outlet 1 1/4HB VR100-1122

Pump, Vane, Cast Iron, Inlet/Outlet 1 1/4HB (Discontinued)

  • Mfr # VR100-1122
  • Zoro # G1142373
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VR100-1122
Zoro #
G1142373
UPC #
094705648308
Country of Origin
China

Dimensions

Manufacturer Warranty Length
1 yr
Overall Width
5.7 in
Overall Length
10.4 in
Media Intake Connection Size
1 1/4 in
Discharge Connection Size
1 1/4 in

Details

Item
Vane Pump
HP
0.3281 hp
Voltage
24DC
Max. Pressure (PSI)
14.5 psi
GPM of Water @ 5 Ft. of Head
27.5 gpm
Lip Seal
Nitrile
GPM of Water @ 50 Ft. of Head
18 gpm
Inlet/Outlet
1-1/4 in HB
Max. Temp. (F)
122 Degrees F
Mounting
Motorized Pump Unit
GPM of Water @ 40 Ft. of Head
21 gpm
GPM of Water @ 20 Ft. of Head
25 gpm
Max. Head (Ft.)
50 ft
GPM of Water @ 10 Ft. of Head
27 gpm
Shaft
Stainless Steel
Min. Flow (GPM)
18 gpm
Body Material
Cast-iron
Vane Material
Sintered Bronze
Amps AC
20 DC
Max. Flow (GPM)
28 gpm
GPM of Water @ 30 Ft. of Head
23 gpm
Shaft Material
Stainless Steel
Feet of Head - Maximum
20 ft of head
Nameplate Voltage
24V DC
Horsepower - Maximum
3/10 hp
Flow Rate @ 20 ft of Head - Maximum
25 gpm
Flow Rate - Minimum
84 lpm
Seal Type
Lip
Operating Pressure - Maximum
14.5 psi
Flow Rate @ 5 ft of Head - Maximum
102 lpm
Seal Material
Buna-N
Media Intake Connection Type
BSP
Operating Temperature - Maximum
122 Degrees F
Current
23 A
Operating Temperature - Minimum
-22 Degrees F
Flow Rate @ 50 ft of Head - Maximum
18 gpm
Flow Rate @ 10 ft of Head - Maximum
99 lpm
Flow Rate @ 30 ft of Head - Maximum
23 gpm
Discharge Connection Type
BSP
Viscosity - Maximum
150 cps
Flow Rate - Maximum
28 gpm
Standards
ISO 9001, TUV Certified
Duty Cycle
Continuous
Flow Rate @ 40 ft of Head - Maximum
21 gpm
Housing Material
Cast Iron

Description

Vane Pump, Housing Material Cast Iron, Nameplate Voltage 24V DC, Current 23 A, Operating Pressure - Maximum 14.5 psi, Flow Rate - Minimum 84 lpm, Flow Rate - Maximum 28 gpm, Media Intake Connection Size 1 1/4 in, Media Intake Connection Type BSP, Discharge Connection Size 1 1/4 in, Discharge Connection Type BSP, Vane Material Sintered Bronze, Viscosity - Maximum 150 cps, Seal Type Lip, Seal Material Buna-N, Operating Temperature - Minimum -22 Degrees F
