Shop JET

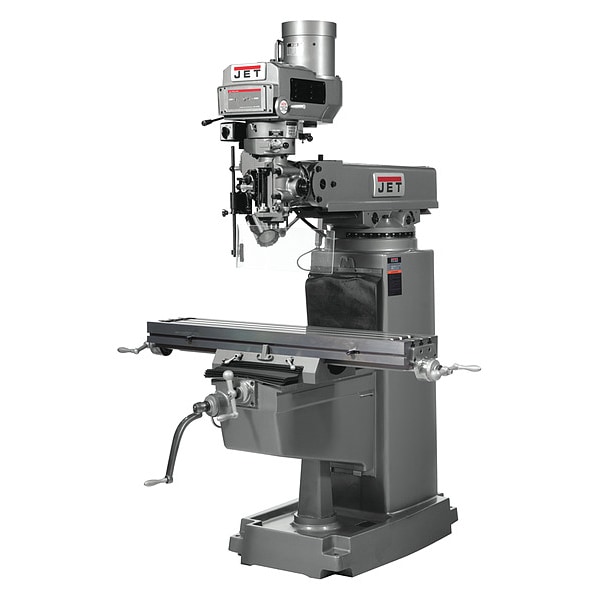

Knee and Column Milling Machine

  • Mfr # 691050

  • Zoro # G1896477

product price:  $19,783.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Voltage
230/460V
Phase
3
Longitudinal Travel
34-1/4"
Cross Travel
14-3/4"
Overall Depth
63 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
691050
Zoro #
G1896477
UPC #
731325764932
Country of Origin
Taiwan, Province of China

Dimensions

Overall Depth
63 in
Overall Height
89 in
Quill Dia.
3 3/8 in
Spindle Travel Length
5"
Table Length
10 in
Ram Travel Length
21"
Table Width
50 in
Overall Length
63"

Details

Voltage
230/460V
Item
Knee and Column Milling Machine
Phase
3
Longitudinal Travel
34-1/4"
Cross Travel
14-3/4"
Number of T-Slots
3
Forward Head Tilt
45 Degrees
Max. Spindle To Column Distance
27"
Backward Head Tilt Adjustment
45 Degrees
Horsepower
3 hp
Right-Hand Head Tilt
90 Degrees
Min. Spindle to Column Distance
2-3/4"
Max. Spindle Speed
4,200 RPM
Table Load Capacity
840 lb
Number of Spindle Speeds
Variable
Min. Spindle to Table Distance
3.26"
Min. Spindle Speed
60 RPM
Max. Spindle to Table Distance
20 in
Left-Hand Head Tilt
90 Degrees

Description

Knee and Column Milling Machine, Table Length 10 in, Table Width 50 in, 3 hp, Table Load Capacity 840 lb, Phase 3, Voltage 230/460V, Longitudinal Travel 34-1/4 In., Cross Travel 14-3/4 In., Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
