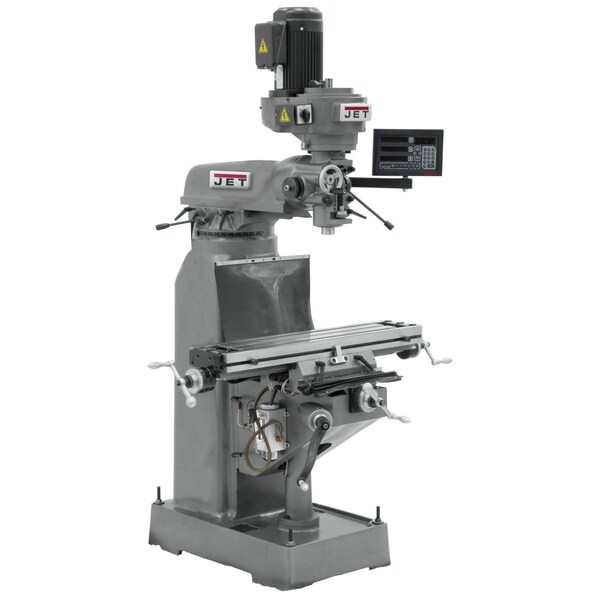

Jet Step Pulley Mill Machine, 1-1/2HP, 230V 691180 - main

Step Pulley Mill Machine, 1-1/2HP, 230V

  • Mfr # 691180

  • Zoro # G1940397

product price: $16,436.99
/ea
Free Shipping & Returns

Key Features

Type
Step Pulley R8
Table Size (In.)
7-7/8 x 35-3/4
Voltage
230V
Motor HP
1-1/2
Phase
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
691180
Zoro #
G1940397
UPC #
662755513978
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
7-7/8 x 35-3/4
Overall Height
78 in
Quill Dia. (In.)
3-3/8
T-Slot Size (In.)
0 3/8
Overall Width
56
Overall Depth
52 in
Quill Dia.
3 3/8 in
Overall Length
55"
Table Width
35 3/4 in
Table Length
7 7/8 in
Ram Travel Length
10-1/2"
Spindle Travel Length
5"

Details

Type
Step Pulley R8
Voltage
230V
Item
Knee and Column Milling Machine
Motor HP
1-1/2
Phase
3
Longitudinal Travel
22-1/4"
Cross Travel
9-1/2"
Longitudinal Travel (In.)
22.25
Cross Travel (In.)
9-1/2
Knee Travel (In.)
14
Spindle Taper
R-8
Quill Travel (In.)
5
Hz
60
Number of T-Slots
3
Head Angle (Deg.)
90
Includes
2-Axis Newall DP700, X-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Ram Travel (In.)
10-1/2
Spindle Speed (RPM)
120 to 1550
Spindle to Table (In.)
13-3/4
Features
Precision bored and honed milling head, Large diameter quill is chromed, High precision spindle bearings, Over 10" of front to back ram travel, Locks on all movable surfaces, 2 year warranty
Max. Table Weight (lbs.)
500
Horsepower
1 1/2 hp
Table Load Capacity
500 lb
Right-Hand Head Tilt
90 Degrees
Number of Spindle Speeds
10
Min. Spindle to Column Distance
5-1/4"
Spindle Speed Control
Step Pulley
Max. Spindle To Column Distance
15-3/4"
Max. Spindle to Table Distance
13 3/4 in
Left-Hand Head Tilt
90 Degrees
Min. Spindle Speed
120 RPM
Max. Spindle Speed
1,550 RPM

Description

Knee and Column Milling Machine, Spindle Speed Control Step Pulley, Table Length 7 7/8 in, Table Width 35 3/4 in, 1 1/2 hp, Table Load Capacity 500 lb, Phase 3, Voltage 230V, Longitudinal Travel 22-1/4 In., Cross Travel 9-1/2 In., Min. Spindle Speed 120 RPM, Max. Spindle Speed 1,550 RPM
