  11. Step Pulley Mill Machine, 2HP, 115/230V

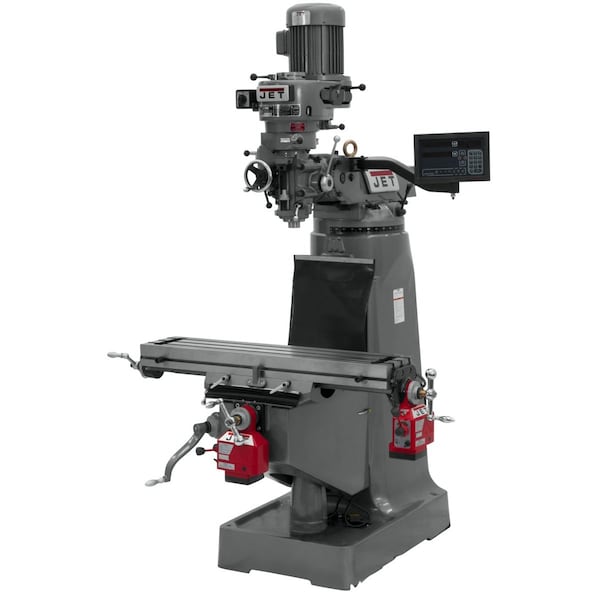

Jet Step Pulley Mill Machine, 2HP, 115/230V 691195 - main

Step Pulley Mill Machine, 2HP, 115/230V

  • Mfr # 691195

  • Zoro # G1940458

product price: $19,574.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Step Pulley R8
Table Size (In.)
9 x 42
Voltage
115/230
Motor HP
2
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
691195
Zoro #
G1940458
UPC #
662755513541
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 42
Quill Dia. (In.)
3-3/8
T-Slot Size (In.)
0 3/8
Overall Width
57
Overall Height
82
Overall Depth
64

Details

Type
Step Pulley R8
Voltage
115/230
Item
Step Pulley Milling Machine
Motor HP
2
Phase
1
Longitudinal Travel (In.)
23.87
Cross Travel (In.)
12-1/2
Knee Travel (In.)
14-1/2
Spindle Speed (RPM)
80 to 2720
Number of T-Slots
3
Spindle Taper
R-8
Max. Table Weight (lbs.)
550
Head Angle (Deg.)
90
Ram Travel (In.)
13-3/8
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Quill Travel (In.)
5
Spindle to Table (In.)
17-1/2
Hz
60
Head Angle Front/Back (Deg.)
45
Includes
2-Axis Newall DP700, X and Y-Axis Powerfeed , One-Shot Lubrication System, Way Covers, Draw bar, Tool Box With Tools
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle bearings, Spindle head is internally cooled, 2 year warranty

Description

Step Pulley Milling Machine, Phase 1, Voltage 115/230
