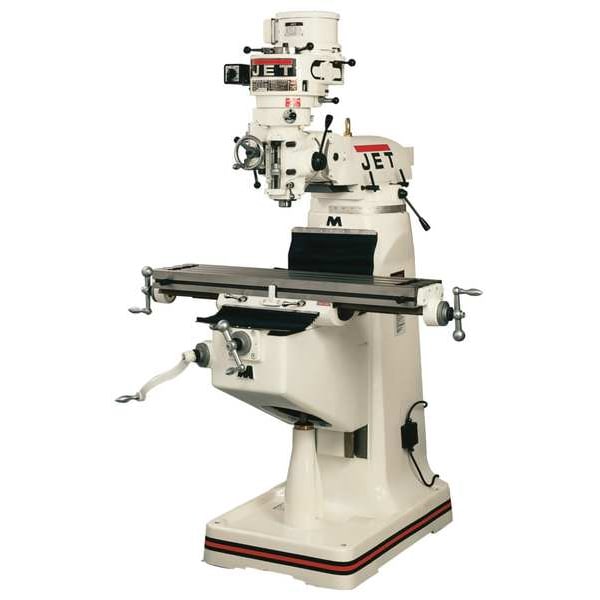

Step Pulley Mill Machine, 3Ph, 2HP, 230V

  • Mfr # 690082

  • Zoro # G5061113

product price:
$
14,932.99
/ea
Additional $550.00 delivery surcharge applies per item.
See details

Key Features

Type
Step Pulley R8
Table Size (In.)
9 x 42
Voltage
230V
Motor HP
2 hp
Phase
Three
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
690082
Zoro #
G5061113
UPC #
662755105883
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 42
T-Slot Size (In.)
3, 5/8
Quill Dia. (In.)
3-3/8
Overall Width
64 in
Overall Depth
57 in
Overall Height
82 in
Quill Dia.
3 3/8 in
Spindle Taper Size
R-8
Table Length
9 in
Overall Length
64 in
Spindle Travel Length
5 in
Ram Travel Length
13-3/8 in
Table Width
42 in
Table Work Surface - Width
42 in
Table Work Surface - Depth
9 in
Quill Diameter
3 3/8 in

Details

Type
Step Pulley R8
Voltage
230V
Item
Vertical Milling Machine
Motor HP
2 hp
Phase
Three
Longitudinal Travel
23-7/8 in
Cross Travel
12-1/2 in
Longitudinal Travel (In.)
23.87
Cross Travel (In.)
12-1/2
Knee Travel (In.)
14-1/2
Features
Meehanite casting, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle bearings, Spindle head is internally cooled, 2 year warranty
Spindle to Table (In.)
17-1/2
Spindle Speed (RPM)
80 to 5440
Head Angle Front/Back (Deg.)
45
Number of T-Slots
3
Includes
(2) Belt Guards, (3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Hoisting Ring, Plastic Oil Bottle, Pleated Way Cover
Hz
60
Max. Table Weight (lbs.)
550
Ram Travel (In.)
13-3/8
Quill Travel (In.)
5
Spindle Taper
R8
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Head Angle (Deg.)
90
Motor Type
TEFC
Forward Head Tilt
45 Degrees
Right-Hand Head Tilt
90 Degrees
Min. Spindle to Table Distance
17-1/2 in
Min. Spindle to Column Distance
4-1/2 in
Number of Spindle Speeds
16
Backward Head Tilt Adjustment
45 Degrees
Max. Spindle To Column Distance
19 in
Left-Hand Head Tilt
90 Degrees
Max. Spindle Speed
5,440 RPM
Table Load Capacity
550 lb
Max. Spindle to Table Distance
17 1/2 in
Min. Spindle Speed
80 RPM
Horsepower
2 hp
Ram Swivel - Right
90 Degrees
Maximum Knee Travel
14 1/2 in
Head Tilt - Backward
45 Degrees
Spindle To Column Distance - Maximum
19 in
Collet Capacity -Maximum
7/8 in
Head Swivel - Right
90 Degrees
Current
5.6 A, 6.5 A
Maximum Spindle Travel
5 in
Spindle Speed - Minimum
80 RPM
Frequency
60 Hz
Ram Swivel - Left
90 Degrees
Milling Head Drive
Belt Drive
Series
JTM-1
Motor Speed - Maximum
3,450 RPM
Maximum Longitudinal Travel
23 7/8 in
Collet Capacity -Minimum
1/8 in
Spindle to Column Distance - Minimum
4 1/2 in
Spindle Speed - Maximum
5,440 RPM
Manufacturer Warranty
2 yr
Head Swivel - Left
90 Degrees
Spindle to Table Distance
17 1/2 in
Maximum Ram Travel
13 3/8 in
Maximum Cross Travel
12 1/2 in
Sound Level
75 dB
Drawbar Style
Manual
Head Tilt - Forward
45 Degrees

Description

Vertical Milling Machine, Table Length 9 in, Table Width 42 in, 2 hp, Table Load Capacity 550 lb, Phase Three, Voltage 230V, Longitudinal Travel 23-7/8 in, Cross Travel 12-1/2 in, Min. Spindle Speed 80 RPM, Max. Spindle Speed 5,440 RPM
