  11. Var Speed Mill Machine, 3Ph, 3HP, 230/460V

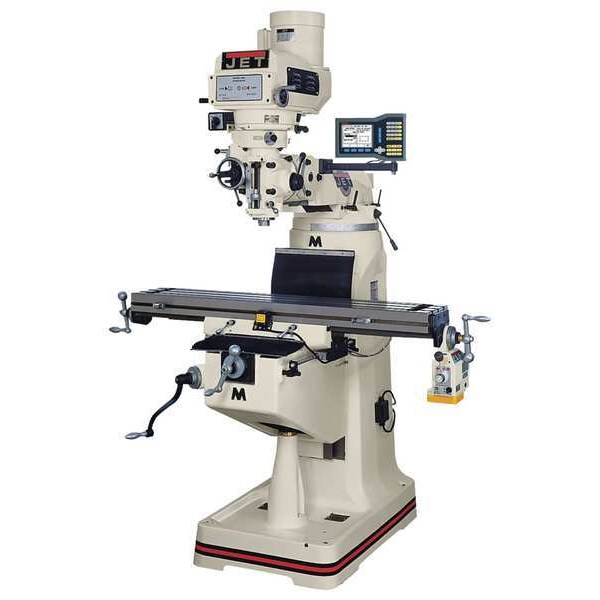

Jet Var Speed Mill Machine, 3Ph, 3HP, 230/460V 690408 - main

Var Speed Mill Machine, 3Ph, 3HP, 230/460V

  • Mfr # 690408

  • Zoro # G9879046

product price: $23,022.99
/ea
Item requires special delivery charges. A $530.00 per item surcharge will be applied.

Key Features

Type
Variable Speed R8
Table Size (In.)
9 x 49
Voltage
230/460V
Motor HP
3
Phase
Three
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
690408
Zoro #
G9879046
UPC #
662755988660
Country of Origin
Taiwan, Province of China

Dimensions

Table Size (In.)
9 x 49
T-Slot Size (In.)
0 3/8
Quill Dia. (In.)
3-3/8
Overall Depth
66 in
Overall Height
85 in
Overall Width
63 in
Quill Dia.
3 3/8 in
Ram Travel Length
13-3/8 in
Table Length
9 in
Table Width
49 in
Overall Length
66 in
Spindle Travel Length
5 in
Spindle Taper Size
R-8
T-Slot Depth
3/4 in
T-Slot Width
5/8 in
Table Work Surface - Depth
9 in
Table Work Surface - Width
49 in
Quill Diameter
3 3/8 in

Details

Type
Variable Speed R8
Voltage
230/460V
Item
Vertical Milling Machine
Motor HP
3
Phase
Three
Longitudinal Travel
34 in
Cross Travel
12 in
Longitudinal Travel (In.)
34.00
Cross Travel (In.)
12
Knee Travel (In.)
14-1/2
Head Angle Front/Back (Deg.)
48
Spindle Taper
R8
Hz
60
Ram Travel (In.)
13-3/8
Spindle Speed (RPM)
60 to 4200
Spindle to Table (In.)
17-1/2
Number of T-Slots
3
Max. Table Weight (lbs.)
660
Feed Rate for Power Down Feed (In.)
0.0015, 0.003, 0.006
Head Angle (Deg.)
90
Features
Meehanite Castings, Precision bored and honed milling head, Large diameter quill is chromed, High precision Class 7 spindle beardings, Chrome plated motor shaft with lower bearing support, 2 year warranty, 30 point inspection
Quill Travel (In.)
5
Includes
(3) Table Adjustment Handles, 17 mm/19 mm Box Wrench, Can White Touch Up Paint, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Elevating Crank Handle, Eye Bolt, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Plastic Oil Bottle, Pleated Way Cover
Motor Type
Totally Enclosed Fan-Cooled
Min. Spindle to Column Distance
4-1/2 in
Min. Spindle Speed
60 RPM
Table Load Capacity
660 lb
Number of Spindle Speeds
Variable
Horsepower
3 hp
Right-Hand Head Tilt
90 Degrees
Forward Head Tilt
45 Degrees
Min. Spindle to Table Distance
17-1/2 in
Max. Spindle To Column Distance
19 in
Backward Head Tilt Adjustment
45 Degrees
Max. Spindle to Table Distance
17 1/2 in
Max. Spindle Speed
4,200 RPM
Left-Hand Head Tilt
90 Degrees
Series
JTM-4VS
Collet Capacity -Minimum
1/8 in
Spindle Speed - Maximum
4,200 RPM
Digital Readout Included
Acu-Rite 203
Head Tilt - Forward
45 Degrees
Spindle to Column Distance - Minimum
4 1/2 in
Drawbar Style
Manual
Maximum Longitudinal Travel
34 in
Spindle To Column Distance - Maximum
19 in
Maximum Knee Travel
14 1/2 in
Collet Capacity -Maximum
7/8 in
Head Swivel - Right
90 Degrees
Includes Digital Readout
Digital Readout Included
Manufacturer Warranty
2 yr
Head Swivel - Left
90 Degrees
Maximum Spindle Travel
5 in
Frequency
60 Hz
Spindle to Table Distance
17 1/2 in
Maximum Ram Travel
13 3/8 in
Head Tilt - Backward
45 Degrees
Included Powerfeeds
X-Axis Powerfeed
Maximum Cross Travel
12 in
Spindle Speed - Minimum
60 RPM

Description

Vertical Milling Machine, Table Length 9 in, Table Width 49 in, 3 hp, Table Load Capacity 660 lb, Phase Three, Voltage 230/460V, Longitudinal Travel 34 in, Cross Travel 12 in, Min. Spindle Speed 60 RPM, Max. Spindle Speed 4,200 RPM
