Shop JOHN GUEST

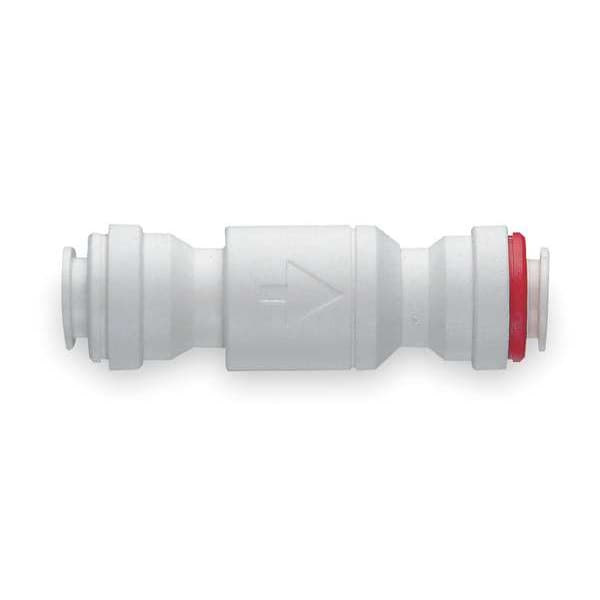

1/4" Push Acetal Spring Check Valve

  • Mfr # 1/4SCV-PK

  • Zoro # G1716836

product price:
$
20.59
/ea

Key Features

Connection Type
Push
Connection
Tube
Body Material
Acetal
Cracking Pressure - Check Valves
0.3 psi
Pipe or Tube Size - Check Valves
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1/4SCV-PK
Zoro #
G1716836
UPC #
-
Country of Origin
United Kingdom
Connection Type
Push
Connection
Tube
Body Material
Acetal
Cracking Pressure - Check Valves
0.3 psi
Item - Check Valves
Check Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Standards
NSF-51 For Food And FDA For Food And Beverage, NSF-61 For Drinking Water
Full Flow - Valves
Yes
Application - Valves
General Purpose
Mechanism and Body Design
Inline Spring
Connection Type - Check Valves
Push x Push
Spring Material - Check Valves
Stainless Steel
Item
Check Valve
Flow Design
Single
Max. Temp. - Valves
150 Degrees F
Max. Pressure
150 psi
Sub-Category
Acetal Resin Copolymer
Cracking Pressure
0.3 psi
Seat Material - Check Valves
EPDM
Max. Steam Pressure - Valves
Not Rated
Material of Construction
Acetal Resin Copolymer
Body Material - Valves
Acetal Resin Copolymer
Min. Temp. - Valves
33 Degrees F
Max. Temp.
167 Degrees F
Max. Water Pressure - Valves
150 psi
Max. Water Pressure
150 psi
Seal Material - Check Valves
EPDM
Seal Material
Buna-N
Temp. Range
-14 to 167F For Air and 33 to 140F For Water
Seat Material
EPDM
Spring Material
Stainless Steel
Mounting Orientation
Horizontal, Vertical
Type
Push In
Max. Pressure (PSI)
150
Check Mechanism Material
Stainless Steel
Operating Temperature - Maximum
65 Degrees C
Connection Type - Side 2
Push
Operating Temperature - Minimum
1 Degrees C
NSF Certifications for Food and Drinking Water
NSF 51, NSF 61
Maximum Pressure - Steam
Not Rated
Valve Body Style
Inline
For Media
Foodstuffs, Intermittent Hot Water, Potable Water, Purification, Water Treatment
Connection Type - Side 1
Push
3-A Standard Compliance
Not Rated
Maximum Pressure - Operating
10 bar
Silent Check
Standard
Vacuum Service Rating
Not Rated

Description

The JOHN GUEST 1/4SCV-PK is a 1/4 in. inline spring check valve with push x push tube connections. It is a self-acting valve that allows flow in one direction and is configured to restrict reverse flow. The valve features an acetal resin copolymer body and is rated for use with foodstuffs, intermittent hot water, potable water, purification, and water treatment applications.

Key Features:

  • 1/4 in. nominal valve size with 1/4 in. connections on both sides
  • Push x push tube connection for inline installation
  • Inline spring design with single flow path
  • Cracking pressure: 0.3 psi
  • Body material: Acetal resin copolymer
  • Check mechanism material: Stainless steel
  • Spring material: Stainless steel
  • Seal material: EPDM
  • Seat material: EPDM
  • Full flow: Yes
  • Maximum pressure: 150 psi (10 bar)
  • Operating temperature range: 33°F to 150°F
  • Mounting orientation: Horizontal or vertical
  • Overall length: 2 in.
  • NSF Certifications: NSF 51, NSF 61
  • Standards: NSF-51, NSF-61, FDA food and beverage contact requirements
