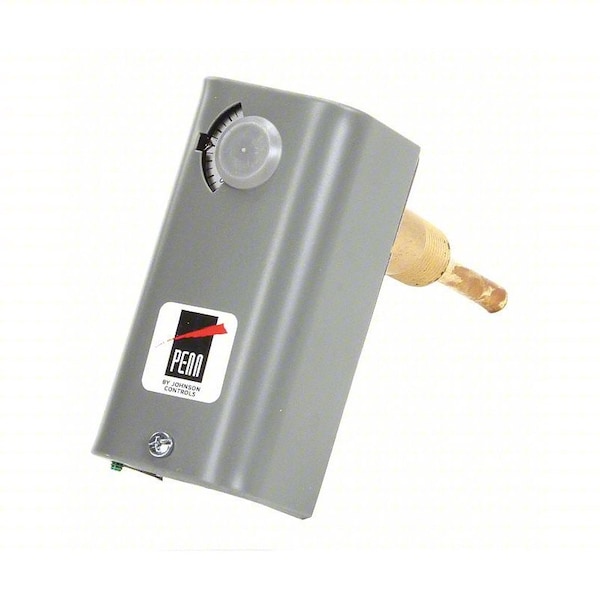

Johnson Controls Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 90F, Screwdriver, 120 to 277V AC, 1C, 1H A19AAF-21C - main
Shop JOHNSON CONTROLS

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 90F, Screwdriver, 120 to 277V AC, 1C, 1H

  • Mfr # A19AAF-21C

  • Zoro # G6104436

product price:  $148.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
A19AAF-21C
Zoro #
G6104436
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
3/8 in
Capillary Length
72 in
Overall Width
2-1/8 in
Overall Height
4-3/8 in
Bulb Length
5 3/4 in
Overall Depth
2 in

Details

Compatible System Type
Hot Water Heating Controls
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
40 to 90 Degrees F
Control Type
Screwdriver
Voltage
120 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Contact Rating Resistive @ 240V
10 A
Inductive Amps @ 240V
3 A
Enclosure Type
Galvanized/Steel
Contact Rating Resistive @ 120V
10 A
Includes
Remote Sensing Bulb
Locked Rotor Amps @ 120V
36 A
Locked Rotor Amps @ 240V
18 A
Contact Rating Resistive @ 277V
10 A
Inductive Amps @ 120V
6 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Standards
CSA LR948/4813 02, UL E6688
Inductive Amps @ 208V
3.4 A
Number of Switches
1
Resistive Amps @ 208VAC
10 A
Thermostat Type
Indoor Single-Stage Controls
For Use With
Suitable for Temperature Control in Heating, Ventilating, Air Conditioning, Refrigeration Applications
Features
Non-Toxic, Environmentally Safe, Eco-Friendly Sensing Element Material
Differential Type
Fixed
Minimum Control Temperature
40 Degrees F
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-35 Degrees F
Contact Rating
120V AC, 240V AC
Full Load Amps @ 240V AC
3 A
Electrical Connection Type
Hardwired, Screw Terminal
Pilot Duty Rating
125 VA @ 24 to 277V AC
Enclosure Color
Gray
Number of Poles
1
Changeover Type
Manual
Sensor Location
Remote
Full Load Amps @ 120V AC
6 A
Maximum Control Temperature
90 Degrees F
Enclosure NEMA Rating
1
Temperature Differential
1.5 Degrees F
Housing Material
Steel
Programming Capability
Not Programmable

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 120 to 277VAC, Full Load Amps @ 120VAC 15A, Full Load Amps @ 240VAC 3A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Thermostat Item Line Voltage Mechanical Thermostat, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Fall, Number of Switches 1, Differential 1.5 Degrees F, Height 4-13/32 In.
