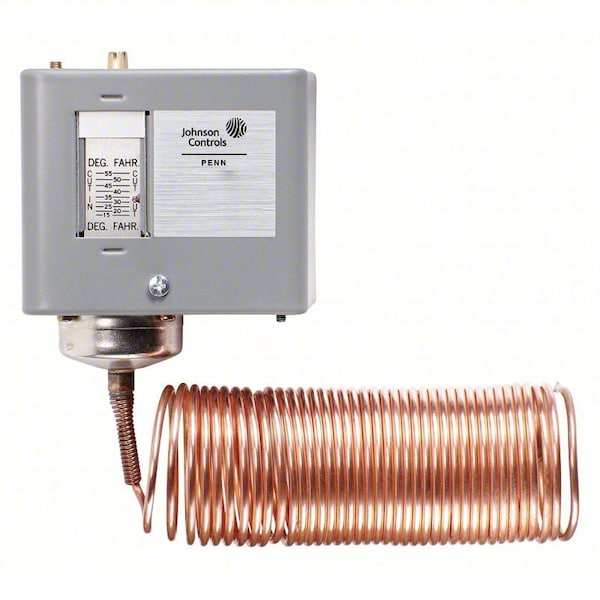

Line Voltage Mechanical Thermostat, Heat or Cool, 35 to 80 F, Screwdriver, 120 to 600V AC, 1C, 1H

  • Mfr # A70HA-2C

  • Zoro # G5061971

product price:  $255.69
/ea
Free Shipping & Returns

Key Features

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A70HA-2C
Zoro #
G5061971
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
3/8 in
Capillary Length
72 in
Bulb Length
3 in
Mounting Hole Diameter
1/4 in, 3/8 in
Overall Depth
2-1/8 in
Overall Height
3-1/4 in
Overall Width
4 in
Capillary Length/Bulb Diameter
6 ft Capillary, 3 in x 3/8 in Bulb
Bulb Diameter
3/8 in

Details

Compatible System Type
Heating Element, Refrigeration
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
DPST
Number of Cooling Stages
1
Number of Heating Stages
1
Temperature Control Range
35 to 80 Degrees F
Control Type
Screwdriver
Voltage
120 to 600V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Inductive Amps @ 208V
3.4 A, 9.2 A
Locked Rotor Amps @ 120V
36 A, 96 A
Number of Switches
2
Sensor Type
Hydraulic Capillary Bulb (Copper)
Contact Rating Resistive @ 240V
6 A, 8 A
Standards
CSA LR948/1222 01, UL SA516
Locked Rotor Amps @ 240V
18 A, 48 A
Resistive Amps @ 208VAC
6 A, 9.2 A
Inductive Amps @ 240V
3 A, 8 A
Inductive Amps @ 120V
6 A, 16 A
Includes
Remote Sensing Bulb
Enclosure Type
Galvanized/Steel
Contact Rating Resistive @ 120V
6 A, 16 A
Number of Relay Inputs
2
Contact Rating Resistive @ 277V
6 A, 7.2 A
Number of Relay Outputs
2
Thermostat Type
Two-Circuit Indoor Single-Stage Controls
For Use With
HVAC/R Applications
Minimum Operating Temperature
0 Degrees F
Temperature Differential
6 Degrees F
Full Load Amps @ 120V AC
6 A, 16 A
Minimum Control Temperature
35 Degrees F
Temperature Scale
Fahrenheit/Celsius
Maximum Operating Temperature
170 Degrees F
Enclosure Finish
Baked Enamel
Differential Type
Manual Reset
Pilot Duty Rating
125 VA @ 120 to 600V AC, 57.5 VA @ 120 to 300V DC
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC, 480V AC, 600V AC
Maximum Control Temperature
80 Degrees F
Sensor Location
Remote
Temperature Sensitivity
+/-2 Degrees F
Enclosure NEMA Rating
1
Contact Type
Snap Action
Full Load Amps @ 240V AC
3 A, 8 A
Number of Poles
1
Changeover Type
Manual
Electrical Connection Type
Hardwired
Enclosure Color
Gray
Stages
1H/1C
Housing Material
Steel
Programming Capability
Not Programmable
Resistive Amps @ 208V AC
6 A, 9.2 A
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type DPST, Thermostat Control Range 35 Degrees to 80 Degrees F, Thermostat Voltage 120 to 600VAC, Full Load Amps @ 120VAC 16A Main, 6A Aux, Full Load Amps @ 240VAC 8A Main, 3A Aux, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 6 Degrees F, Height 3-1/4 In., Width 4 In., Depth 2-3/32 In.
