Shop JOHNSON CONTROLS

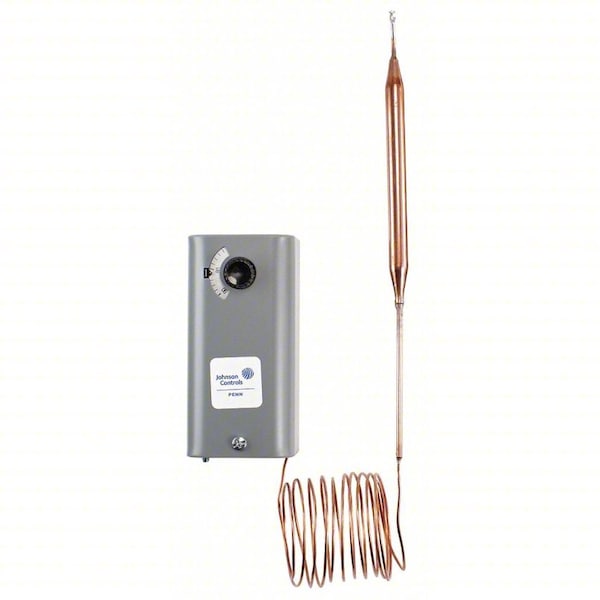

Line Voltage Mechanical Thermostat, Heat or Cool, 40 to 90F, Exposed Dial, 24 to 277V AC, 2C, 2H

  • Mfr # A28AA-36C

  • Zoro # G6074704

product price:
$
322.99
/ea
Free Shipping & Returns

Key Features

Compatible System Type
HVAC Equipement
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A28AA-36C
Zoro #
G6074704
UPC #
-
Country of Origin
Mexico

Dimensions

Sensing Bulb Dia.
3/8 in
Capillary Length
72 in
Overall Depth
1-7/8 in
Capillary Length/Bulb Diameter
6 ft Capillary, 6 ft x 3/8 in Bulb
Overall Height
4-3/8 in
Overall Width
2-1/8 in
Bulb Length
72 in
Mounting Hole Diameter
1/4 in
Bulb Diameter
3/8 in

Details

Compatible System Type
HVAC Equipement
Application
Heat or Cool
Switch Action
Open/Close on Rise
Switch Type
SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
Temperature Control Range
40 to 90 Degrees F
Control Type
Exposed Dial
Voltage
24 to 277V AC
Mounting
Flat Surface
Item
Line Voltage Mechanical Thermostat
Inductive Amps @ 240V
8 A
Includes
Bulb Mounting Clip, Remote Sensing Bulb
Enclosure Type
Galvanized/Steel
Standards
CSA LR948/400-E-0, UL E6688
Inductive Amps @ 208V
9.2 A
Inductive Amps @ 120V
16 A
Contact Rating Resistive @ 240V
8 A
Contact Rating Resistive @ 277V
7.2 A
Sensor Type
Hydraulic Capillary Bulb (Copper)
Number of Switches
2
Resistive Amps @ 208VAC
9.2 A
Locked Rotor Amps @ 240V
48 A
Contact Rating Resistive @ 120V
16 A
Locked Rotor Amps @ 120V
96 A
For Use With
Two Stage Control for HVAC/Refrigeration Equipment
Thermostat Type
Indoor Two-Stage Controls
Number of Relay Inputs
2
Number of Relay Outputs
2
Sensor Location
Remote
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC
Enclosure Color
Gray
Full Load Amps @ 240V AC
8 A
Temperature Sensitivity
+/-2 Degrees F
Enclosure NEMA Rating
1
Minimum Control Temperature
40 Degrees F
Enclosure Finish
Baked Enamel
Stages
2H/2C
Temperature Scale
Fahrenheit/Celsius
Full Load Amps @ 120V AC
16 A
Temperature Differential
3.5 Degrees /2 to 7 Degrees F
Minimum Operating Temperature
-35 Degrees F
Changeover Type
Manual
Pilot Duty Rating
125 VA @ 24 to 277V AC
Maximum Operating Temperature
140 Degrees F
Number of Poles
1
Maximum Control Temperature
90 Degrees F
Contact Type
Snap Action
Differential Type
Adjustable
Housing Material
Steel
Programming Capability
Not Programmable
Resistive Amps @ 208V AC
9.2 A
Enclosure Material
Steel

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 24 to 277VAC, Full Load Amps @ 120VAC 16A, Full Load Amps @ 240VAC 8A, Thermostat Programmable No, Remote Sensing Capability Yes, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included Yes, Switch Action Open/Close on Rise, Number of Switches 2, Differential 2 Degrees to 7 Degrees F, Height 4-3/8 In., Width 2-1/8 In., Depth 1-13/16 In.
