  11. 1-1/2" FNPT Brass Gas Ball Valve Inline
Jomar Valve 1-1/2" FNPT Brass Gas Ball Valve Inline 240-007B - main

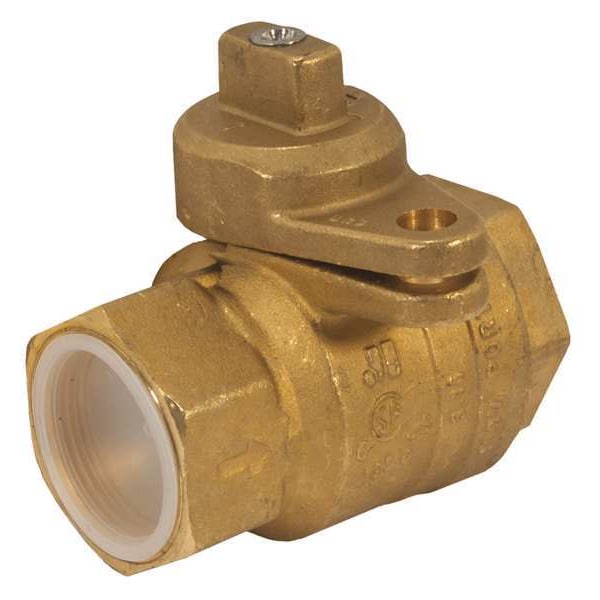

1-1/2" FNPT Brass Gas Ball Valve Inline

  • Mfr # 240-007B

  • Zoro # G9490476

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
240-007B
Zoro #
G9490476
UPC #
662527291868
Country of Origin
Italy

Dimensions

Pipe Size
1 1/2 in
Overall Length
4.21 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Handle Length
2.2 in
Ball Opening Size
1.49 in
Handle Height
3.03 in
Connection Size - Side 1
1 1/2 in

Details

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Gas
Connection Type
FNPT x FNPT
Item
Gas Ball Valve
Stem Material
Brass
Temp. Range
-40 Degrees to 300 Degrees F
Hose I.D.
1 1/2 in
Seat Material
TFM(TM) Hostaflon(R)
Handle Type
Tee
Stem Type
Blowout Proof
Ball Valve Product Group
Manual
Handle Material
Brass
Max. Pressure
600 PSI CWP
Features
Triple Stem Seal
Standards
CSA ANSI B16.33 (125G), CSA CGA 3.16 (125G), DOT 192, MSS SP-110
Body Material
Brass
Seal Material
Nitrile
Operating Temperature - Maximum
300 Degrees F
Color - Valve Handle
Brass
Maximum Pressure - Combustible Gas
Not Rated
Connection Gender - Side 2
Female
3-A Standard Compliance
Not Rated
Connection Type - Side 2
NPT
Maximum Pressure - Steam
0 PSI WSP
Connection Type - Side 1
NPT
Coefficient of Volume (Cv)
36
Vented Ball Valve
Non-Vented
Operating Temperature - Minimum
-40 Degrees F
Handle - Locking
Locking
Connection Gender - Side 1
Female
Vacuum Service Rating
29 in Hg
Valve Series
240

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Valve Construction Two-Piece, Nominal Valve Size 1 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 175 psi, Maximum Pressure - Steam 0 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Tee

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
