  11. 1" FNPT Brass Gas Ball Valve Inline

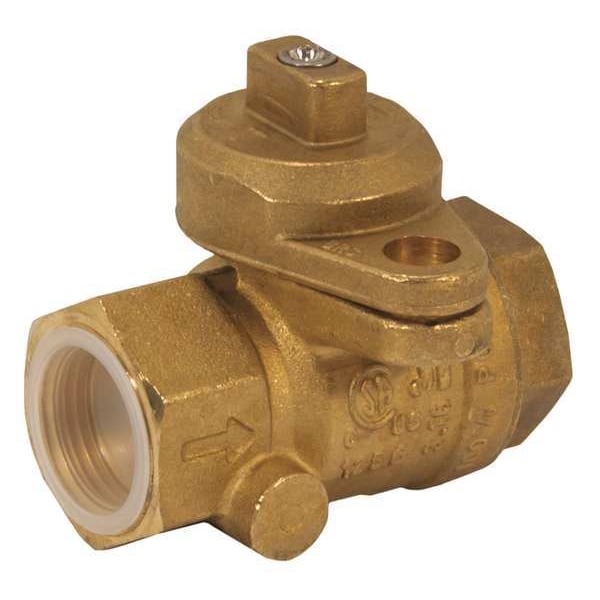

Jomar Valve 1" FNPT Brass Gas Ball Valve Inline 240-005B - main

1" FNPT Brass Gas Ball Valve Inline

  • Mfr # 240-005B

  • Zoro # G9490451

product price: $57.39
/ea

Key Features

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
240-005B
Zoro #
G9490451
UPC #
662527291820
Country of Origin
Italy

Dimensions

Pipe Size
1 in
Overall Length
3.4 in
Nominal Valve Size
1 in
Handle Height
2.24 in
Ball Opening Size
0.97 in
Handle Length
1.73 in
Connection Size - Side 1
1 in
Connection Size - Side 2
1 in

Details

Ball Material
Brass
Body Style
Inline
Ball Port Style
Full Port
Valve Ways
2-Way
Valve Structure
Two-Piece
For Media
Gas
Connection Type
FNPT x FNPT
Item
Gas Ball Valve
Temp. Range
-40 Degrees to 300 Degrees F
Stem Material
Brass
Max. Pressure
600 PSI CWP
Ball Valve Product Group
Manual
Seat Material
TFM(TM) Hostaflon(R)
Body Material
Brass
Handle Material
Brass
Standards
CSA ANSI B16.33 (125G), CSA CGA 3.16 (125G), DOT 192, MSS SP-110
Features
Triple Stem Seal
Stem Type
Blowout Proof
Hose I.D.
1 in
Handle Type
Tee
Seal Material
Nitrile
Connection Type - Side 2
NPT
Handle - Locking
Locking
Connection Gender - Side 2
Female
Operating Temperature - Maximum
300 Degrees F
Connection Type - Side 1
NPT
Maximum Pressure - Combustible Gas
Not Rated
Maximum Pressure - Steam
0 PSI WSP
Operating Temperature - Minimum
-40 Degrees F
Coefficient of Volume (Cv)
36
Vacuum Service Rating
29 in Hg
Color - Valve Handle
Brass
Connection Gender - Side 1
Female
Vented Ball Valve
Non-Vented
3-A Standard Compliance
Not Rated
Valve Series
240

Description

Manual Two-Way Ball Valve, Body Material Brass, For Media Gas, Valve Construction Two-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 175 psi, Maximum Pressure - Steam 0 psi, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating 29 in Hg, Ball Material Chrome-Plated Brass, Ball Port Style Full Port, Handle - Locking Locking, Handle Type Tee

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
