Shop J.W. WINCO

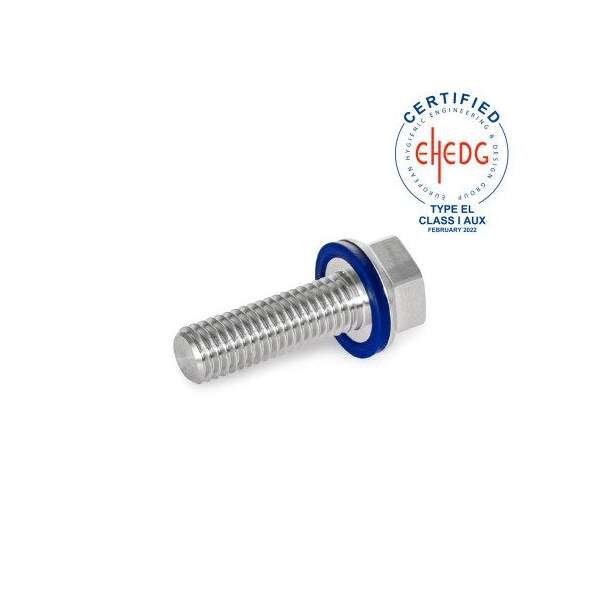

Hygienic Hex Head Bolt

  • Mfr # 1581-3/8X16-1.00-MT-H

  • Zoro # G922902991

product price:  $20.35
/ea

Key Features

Includes Washer
Yes
Rockwell Hardness
N/A Not Hardened
Head Height
3/8 in
Material Grade/Class
316L
System of Measurement
Inch
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
1581-3/8X16-1.00-MT-H
Zoro #
G922902991
UPC #
664423635814
Country of Origin
Germany

Dimensions

Head Height
3/8 in
Fastener Length
1 in
Thread Size
3/8"-16
Washer Outside Diameter
47/64 in
Overall Length
1 3/8 in
Drive Size
9/16 in
Screw Size
3/8 in
Head Width
9/16 in

Details

Includes Washer
Yes
Rockwell Hardness
N/A Not Hardened
Material Grade/Class
316L
System of Measurement
Inch
Includes Nut
No
Temperature - Maximum
302 Degrees F
Thread Type
Coarse
Drive Type
Socket
O-Ring Temperature - Minimum
-13 Degrees F
Type
Hex Head Cap Screw
Item
Hygienic Flanged Hex Head Bolt W/ Washer
Resistance Properties
Corrosion-Resistant
For Use in Systems
Hygiene Areas
Thread Direction
Right Hand
Nut Standards
N/A - No Nut
Temperature - Minimum
-13 Degrees F
Material
Stainless Steel
Thread Fit
6g
Thread Style
Fully Threaded
O-Ring Temperature - Maximum
302 Degrees F
Washer Type
Sealing
Washer Standards
FDA Compliant
Tensile Strength
500 N/sq mm
Features
Low-Profile Head, The High Quality Finish as Well as the Large Corner Radii and Closed Surfaces Prevent Adherence of Dirt and Facilitate Cleaning, The Sealed Mounting Surface Enables Components to be Mounted without Dead Spaces

Description

Hygienic Flanged Hex Head Bolt W/ Washer, System of Measurement Inch, Fastener Length 1 in, Head Height 3/8 in, Head Width 9/16 in
