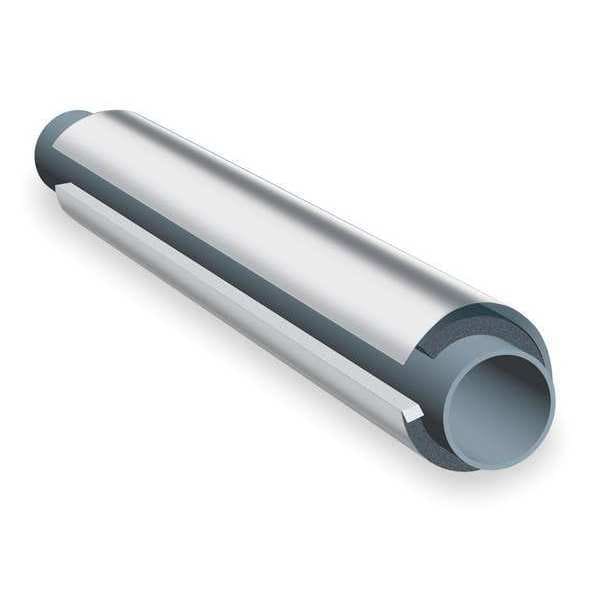

2-1/8" x 3 ft. Pipe Insulation, 1" Wall
- Zoro #: G0596355
- Mfr #: 6RYL100218AL
$28.84
- Insulation Body Material: NBR/PVC
- Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
- Green Certification or Other Recognition: GREENGUARD Certified
K-Flex Usa #6RYL100218AL Specifications
| |
| Insulation Body Material: NBR/PVC | Green Environmental Attribute: Product Contributes To Reducing Energy Consumption |
| Green Certification or Other Recognition: GREENGUARD Certified | For Iron Pipe Size: 2-1/8" |
| Item: Pipe Insulation | Pipe Insulation Item: Pipe Insulation |
| Insulation Type: Pre-Slit, Pre Glued with Aluminum Clad | Standards: Elastomeric insulation: ASTM C 534 Type 1 Tubing; ASTM D 1056-00-2C1; New York City MEA 186-86-M Vol. IV; USDA Requirements, UL 94-5V Flammability Classification (Recognition # E300774); ASTM E84 1-1/2 in 25/50 Tested according to UL 723 and NFPA 255; Complies with requirements of CAN/ULC S102-M88; FMRC 2006 Approval Guide Chapter 14 Pipe Insulation; NFPA No 101 Class A Rating; Meets requirements of NFPA 90A Sect 2.3.3 for Supplementary materials for Air Distribution Systems, Meets requirements of ASTM C 411 (Test Method for Hot Surface performance of High Temperature Thermal Insulation); Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion), MIL-P-15280 For T (Tubing) Aluminum Jacketing: ASTM E 84 25/450; ASTM G 53 Excellent; BS 903 F12 Excellent; BS 903 A2 Excellent; BX 903 A43 Excellent |
| Includes: Pressure Sensitive Adhesive System | Insulation Max. Thickness: 1" |
| Approx. R Value: 6.1 | Fits Tube Size: 2 1/8 in |
| Insulation Nominal I.D.: 2 1/8 in | Material: NBR/PVC Based Elastomeric, Aluminum/Mylar Jacketing |
| For Tube O.D.: 2-1/8" | Insulation Approx. R Value: 6.1 |
| Wall Thickness - Insulation: 1 in | Length: 3 ft. |
| Insulation Length: 3 ft | Insulation Temp. Range: -40 Degrees F to 220 Degrees F |
| Temp. Range: -40 Degrees to 220 Degrees F | Color: Silver |
| Wall Thickness: 1" | Country of Origin (subject to change): United States |
Help us improve our product informationDescription
Pipe Insulation, Insulation Body Material NBR/PVC, Type - Pipe Insulation Pre-Slit/Pre Glued, Wall Thickness - Insulation 1 in, Insulation Length 3 ft, Fits Tube Size 2 1/8 in, Insulation Nominal I.D. 2 1/8 in, Insulation Temp. Range -40 Degrees F to 220 Degrees F, Insulation Approx. R Value 6.1, Color Silver, Includes Pressure Sensitive Adhesive System
