  9. Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 3,600/5,800 cfm, Non-Oscillating

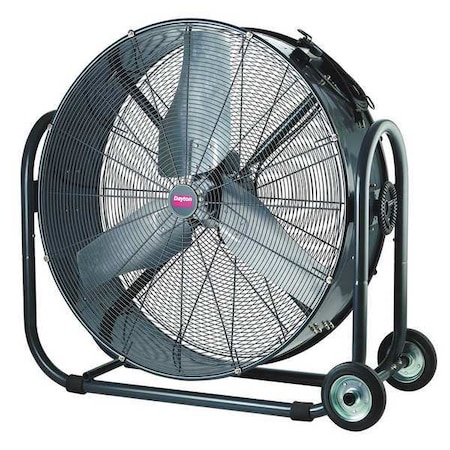

Dayton Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 3,600/5,800 cfm, Non-Oscillating 1YNW3 - main

Standard Duty Air Circulator, Floor Mount, 24 in Blade Dia, 115V, 3,600/5,800 cfm, Non-Oscillating

  • Mfr # 1YNW3

  • Zoro # G3279017

product price: $336.99
/ea
Free Shipping & Returns

Key Features

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1YNW3
Zoro #
G3279017
UPC #
190735150450
Country of Origin
China

Dimensions

Blade Diameter
24 in
Width
34-1/4 in
Height
28 in
Shaft Dia.
5/8 in
Outside Dia.
26-1/2 in
Max. Depth
17 in
Wheel Dia.
7 in
Fan Cord Length
9 ft
Height Adjustment
Fixed Height
Depth
17 in

Details

Oscillation
Non-Oscillating
Number of Speeds
2
Voltage
115V
Phase
1
Motor HP
1/3
Air Flow
3,600/5,800 cfm
Drive Type
Direct Drive
Blade Material
Aluminum
Sound Level
70 dBA
Item
Air Circulator
Thermal Protection
Automatic Reset
CFM Low
3600
Motor Enclosure
Open Air Over
Bearing Type
Ball
Includes
Cord Wrap and Tilt Wheel, 7" Plastic and Rubber Casters
Watts
450/285 W
NEMA Plug Configuration
5-15P
Housing Material
Steel
CFM High
5800
Air Velocity @ 60 Ft.
45/10 fpm
Mobile/Stationary
Mobile
Fan Style
Standard Duty
Hz
60
Air Velocity @ 40 Ft.
100/90 fpm
Motor RPM
850/700 RPM
Assembled
Yes
Motor Insulation
Class B
Motor Type
Permanent Split Capacitor
Max. Ambient Temp.
104 Degrees F
Fan Mounting Location
Floor
Number of Blades
3
Application
Spot Cooling and People Cooling; Air Circulation
Environmental Applications
Industrial
Wire Guard Finish
Polyester Powder Coated
Air Velocity @ 20 Ft.
260/210 fpm
Guard Material
Steel
Number of Conductors
3
Fan Accessory Style
Standard
Standards
cULus Listed, OSHA compliant wire guards
Assembly Required
Yes
Color
Dark Gray
Fan Housing Material
Steel
Head Tilt Adjustment
360 Degrees
RPM
850/700
Amps
3.9/2.6
Wheel Material
Steel/Rubber
Wheeled Base
Mobile
Material
Steel
Motor hp
1/3 hp
NEMA plug Configuration
5-15p

Description

Standard-Duty Industrial Fan, Blade Dia. 24 in, Mobile, Non-Oscillating, 2 Speeds, Voltage 120V AC, 1 Phase, CFM High 5800, CFM Low 3600, Air Velocity @ 20 Ft. 260/210 fpm, Motor HP 1/3 hp, Motor RPM 850/700, Operating Amps 3.9/2.6, Fan Mounting Location Floor, Fan Accessory Style Standard, Fan RPM 850/700, Sound Level 70 dBA, Max. Ambient Temp. 104 Degrees F, Hz 60 Hz, Watts 450/285, Motor Type Permanent Split Capacitor, Drive Type Direct Drive, Outside Dia. 26-1/2 In., Height 28 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
