  5. LED Driver, 0-10V, 4-7/8 in - L, 1PK

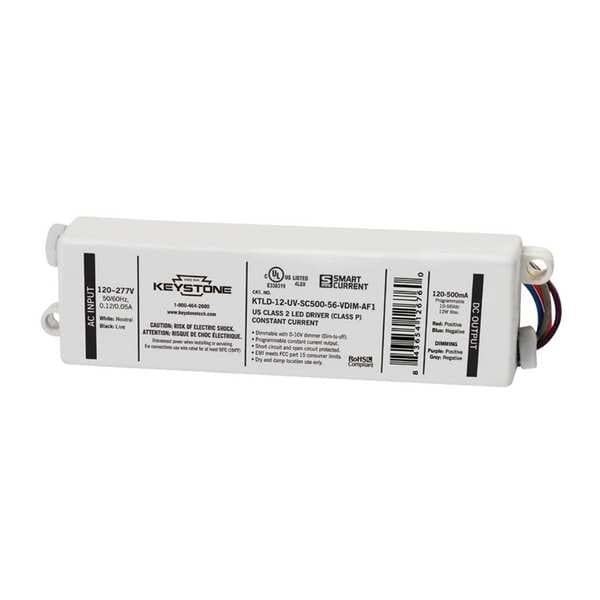

Keystone LED Driver, 0-10V, 4-7/8 in - L, 1PK KTLD-12-UV-SC500-56-VDIM-AF1-CP - main

LED Driver, 0-10V, 4-7/8 in - L, 1PK

  • Mfr # KTLD-12-UV-SC500-56-VDIM-AF1-CP

  • Zoro # G900905877

product price:  $36.39
/ea

Key Features

Power Output
12 W
Environmental Rating
Dry Location
Length
4 7/8 in
Width
1 5/16 in
Height
13/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
KTLD-12-UV-SC500-56-VDIM-AF1-CP
Zoro #
G900905877
UPC #
843654126760
Country of Origin
China

Dimensions

Length
4 7/8 in
Width
1 5/16 in
Height
13/16 in

Details

Item
LED Driver
Power Output
12 W
Environmental Rating
Dry Location
For Use With
LED Lighting
Input Voltage
120 to 277V AC
Driver Class
Class 2
Ouput Constant
Programmable
Driver Mounting Location
Remote Mount
Input Power
12 W
Power Factor
Greater Than 0.9
Dimming
Yes
Output Current
120 to 500 mA
Standards
ANSI C63.4:2009 Class B, EN61000-3-2 (Harmonic Current Emissions Class C), EN61347-1, EN61347-2-13, UL 8750, UL 1310 Class 2
Ambient Temp. Range
-40 Degrees to 140 Degrees F
Max. Case Temp.
194 Degrees F
Output Technology
Programmable
Output Voltage
10 to 56V DC
Dimming Range
100% to 1%
Intended LED Usage
Fixture Array
Number of Bulbs Supported
1
Dimming Type
Full Continuous Dimming
Dimming Method
0-10V
Case Form Factor
Compact
Profile
Standard Profile
Number of Fixtures
1
Power Output - Maximum
12 W
Min. Ambient Temp.
-40 Degrees F
Input Current - Maximum
0.14 A
UL Type
Type C
Power Factor - Minimum
0.9
Driver Life Expectancy
85,000 hr
Max. Ambient Temp.
140 Degrees F
Power Output - Minimum
1.2 W
Frequency
50/60 Hz
Total Harmonic Distortion
20 %

Description

LED Driver, Intended LED Usage Fixture Array, Number of Bulbs Supported 1, 120 to 277V AC Input Voltage, 10 to 56V DC Output Voltage, 120 to 500 mA Output Current, 12 W Input Power, 12 W Power Output, 4 7/8 in Length, 1 5/16 in Width, 13/16 in Height, Case Form Factor Compact, Standard Profile, Class 2
