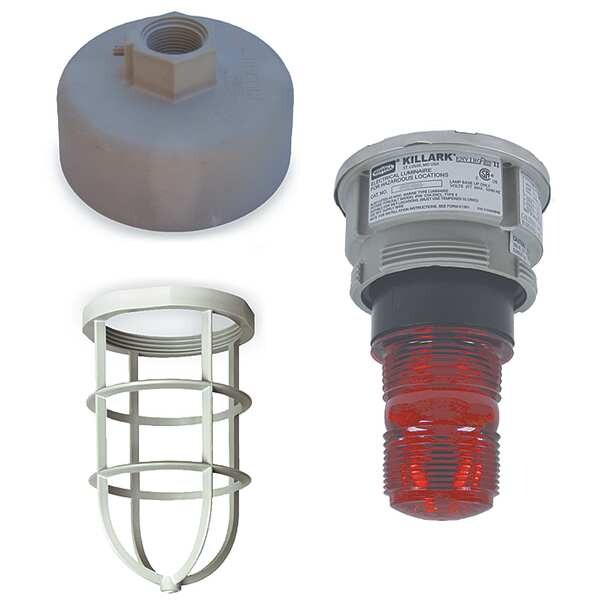

Killark Hazard Location Fixtures NVSZMFG26RAG - main

Hazard Location Fixtures

  • Mfr # NVSZMFG26RAG

  • Zoro # G0869757

product price: $413.99
/ea
Free Shipping & Returns

Key Features

Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NVSZMFG26RAG
Zoro #
G0869757
UPC #
-
Country of Origin
Multiple

Dimensions

Nominal Width
4 3/8 in
Length (In.)
4.22
Height (In.)
11.55
Width (In.)
4.22
Nominal Height
11 35/64 in
Dia. (In.)
7.26
Overall Height
11 1/2 in
Nominal Size - Fixtures
1/2 ft x 1/2 ft
Overall Width
4 3/8 in
Overall Depth
11 9/16 in

Details

Item
Hazardous Location Signal Light
Lighting Technology
Xenon
Housing Material
Fiberglass Reinforced, Polyester
Housing Color
Gray
Includes
Guard
IP Rating
IP66
Mounting
Pendant
Standards
Marine Rated (US Only), NEMA 4X
Lamp Life (Hours)
10K
Max. Fixture Wattage
2.7 W
Lamp Quantity
1
Ambient Temp. Range
-40 Degrees to 104 Degrees F
Ambient Temp. Range (F)
-40 to 104
Color
Red
Lamp Type
LED
Voltage
12 to 80 V DC
Dimmable
No
Flashes per Minute
60-80
Description/Special Features
Polycarbonate Lense, Designed for Indoor and Outdoor Applications, Red Strobe Color, Resists Corrosive Effects of Most Chemicals, Hydrocarbons and Solvents
Lamp Type - Fixtures
Flashing Strobe
Lamp Watts - Fixtures
2.7
Item - Decorative and Surface Mount Fixtures
Traditional Surface Mount Fixture
Lamp Included
Yes
Series
NVS
Fixture Voltage
12 to 80V AC
Fixture Wattage
2.7
Fixture Type - Decorative and Surface Mount Fixtures
Hazardous Location Signal Light
Type
Flashing
Linkable Up To
Unlinkable
Emergency Battery Backup
No
Housing Finish
Gray
Lamp Watts
2.7 W
CA Title 24 Compliant
No
Safety Rating
Class III, Class Il, Divisions 1 and 2, Group F, G, Class l, Division 2, Groups A, B, C, D, Class l, Zone 2, Groups IIC, IIB, IIA
Min. Ambient Temp.
-40 Degrees F
UL/CSA/ETL Listed
CSA Certified, UL Listed
For Number of Bulbs
1
Mounting Location
Pendant
For Max. Bulb Wattage
2.7 W
Temperature Code
T2C
Max. Ambient Temp.
104 Degrees F
Flasher Strobe Color
Red
For Bulb Type
Xenon
Number of Bulbs
1
Mounting Style
Pendant
Ingress Protection Rating
66
Number of Lamps
1
NEMA Rating
NEMA 4X
Operating Temperature - Minimum
-40 Degrees C
Light Source
Xenon
For Hazardous Location
Class I, Division 2, Class II, Division 1, Class II, Division 2, Class III
Operating Temperature - Maximum
40 Degrees C
Wattage
2.7 W
Lens Color
Red
Operating Voltage
12 to 80 V DC

Description

Hazardous Location Signal Light, Color Red, Lamp Type LED, Flashes per Minute 60-80, Housing Material Fiberglass Reinforced, Polyester, Mounting Pendant, Voltage 12-80V DC
