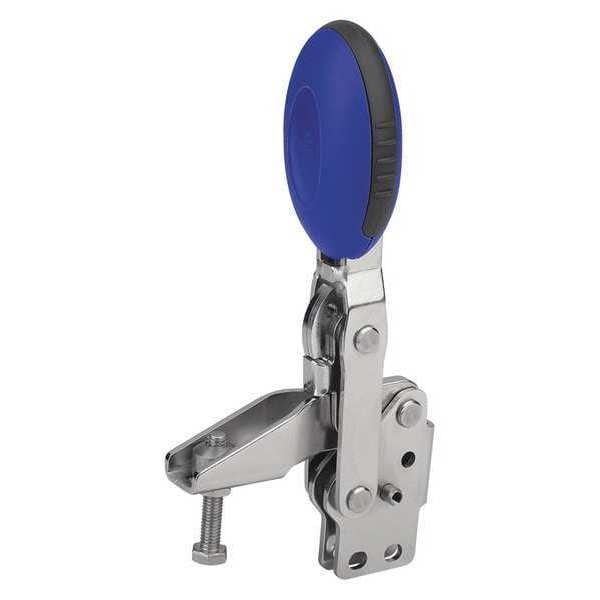

Toggle Clamp Vertical, Foot Vert. F1=1350, Clamping Spindle M06X35, Stainless Steel, Blue
Mfr # K0663.106001
Zoro # G4027801
product price:Â $73.95
/eaKey Features
Type
Straight Foot, Stainless Steel Body, Vertical Handle
Holding Capacity (Lb.)
207
Overall Height (In.)
6.65 in
Body Material
Stainless Steel
Overall Length (In.)
3.41 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- K0663.106001
- Zoro #
- G4027801
- UPC #
- -
- Country of Origin
- Türkiye
Dimensions
- Overall Height (In.)
- 6.65 in
- Overall Length (In.)
- 3.41 in
- Height Under Arm (In.)
- 1.48 in
- Thread Size
- M6
- Dia. (In.)
- 0.21 in
- Overall Length
- 86.5 mm
- Height Under Arm
- 37.6 mm
- Spindle Thread Size
- M6 x 35
- Overall Depth
- 169 mm
- Wire Rope Length
- 86.5 mm
Description
Toggle Clamp, Handle Orientation Vertical, Holding Capacity - Maximum 207 lbf, Height Under Arm 37.6 mm, Application Clamping, Body Material Stainless Steel, Handle Material Polyamide, Includes Adjustable Clamping Spindle, Straight Foot, Mounting Holes Center to Center - Long Side 14 mm, Mounting Holes Center to Center - Short Side 10.2 mm, Overall Depth 169 mm, Overall Length 86.5 mm, Spindle Material Stainless Steel, Spindle Thread Size M6 x 35
