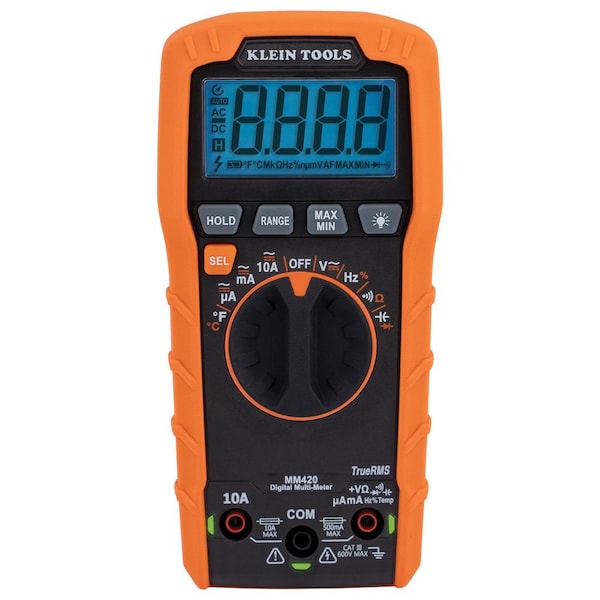

Multimeter, 600 V Max DC, TRMS, 4,000 Instrument Counts, LCD

  • Mfr # MM420

  • Zoro # G005671387


product price: $71.49
/ea

Key Features

Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Batteries, Test Leads, Thermocouple
Standards
CE, UKCA Certified
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MM420
Zoro #
G005671387
UPC #
092644693748
Country of Origin
China

Dimensions

Overall Height
1.8 in
Depth
6 in
Overall Width
3.2 in
Length
6 in (15.2 cm)
Battery Size
AAA

Details

Item
Multimeter
Display Type
LCD
Data Hold
Yes
Instrument Counts
4,000
Includes
Batteries, Test Leads, Thermocouple
Standards
CE, UKCA Certified
Auto Power Off
Yes
Audible Continuity
Yes
Diode Test
Yes
Max. Ohms
50MΩ
Type
Digital Multimeter
Source Voltage
600V AC/DC
Instrument Safety Rating
CAT III 600V
Frequency Range (Hz)
1 Hz - 50 KHz
Source Current
10A AC/DC
Auto Ranging
Yes
Special Features
Auto-Range, Backlight, Lead Alert, Min/Max Measurements
Duty Cycle
Yes
Temp. Range
-40° to 1832°F (-40° to 1000°C)
Intrinsically Safe
No
Calibration Certificate
Not Included
Calibration Certificate Included
No
Features
Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
Weight
8.2 oz
Maximum DC Voltage Measurement
600 V
Maximum AC Current Measurement
10 A
Removable Screen
No
Basic AC Current Accuracy
+/-(1.0% + 5 digits)
Basic DC Current Accuracy
+/-(1.0% + 5 digits)
Maximum AC Voltage Measurement
600 V
AC Response Calculation
TRMS
Basic AC Voltage Accuracy
+/-(1.0% + 3 digits)
Waterproof
No
Bluetooth Compatible
No
Dustproof
No
Current Leakage Testing
No
Safety Rating_SUBHEAD
CAT III 600V
Thermal Imaging
No
Capacitance Measurement Accuracy
+/-(3.5% + 10 digits)
Maximum DC Current Measurement
10 A
Frequency Measurement Accuracy
+/-(1.0% + 5 digits)
Batteries Included
Yes
Battery Access
Yes
Basic DC Voltage Accuracy
+/-(0.5% + 5 digits)
Multiple On-Screen Displays
Yes
Battery Chemistry
Alkaline
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Resistance
Resistance Measurement Accuracy
+/-(1.2% + 5 digits)
Maximum Frequency Measurement
50 kHz
Safety Rating_BACKGROUND
MM420 CAT III 600V
Temperature Measurement Accuracy
+/-(1.2% + 6 Degrees F)
Maximum Resistance Measurement
50 megaohm
Multimeter Features_Filter_BACKGROUND
MM420
Minimum Temperature Measurement
-40 Degrees F
Maximum Temperature Measurement
1,832 Degrees F
MERCH HOLD ACCURACY
+/-(0.5% + 5 digits) +/-(1.0% + 3 digits) +/-(1.0% + 5 digits) +/-(1.0% + 5 digits) +/-(3.5% + 10 digits) +/-(1.0% + 5 digits) +/-(1.2% + 6 Degrees F) +/-(1.2% + 5 digits)
MERCH HOLD - DMM Features
No No No No No No No Not Rated
Fuse Access
Yes
FEATURES HOLD_MERCH
LCD Yes Yes
Style
Full Size
IP Rating
Not Rated
Capacitance Measurement Resolution
400 uF

Description

Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools' Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.


•Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
•Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
•Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
•Low battery indicator and easily accessible battery and fuse compartment
•Durable meter built to withstand a 6.6-Foot (2 m) drop
•Includes test leads, thermocouple with adapter, batteries and user manual
•CAT III 600V safety rating
•For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
