  9. Voltage Tester, 12-1000 AC V, 6 1/4 in Length, Audible, Visual Indication

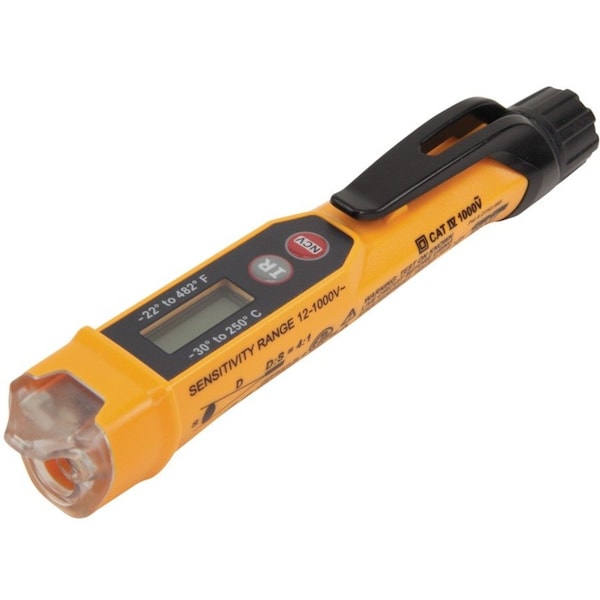

Klein Tools Voltage Tester, 12-1000 AC V, 6 1/4 in Length, Audible, Visual Indication NCVT-4IR - main

Voltage Tester, 12-1000 AC V, 6 1/4 in Length, Audible, Visual Indication

  • Mfr # NCVT-4IR

  • Zoro # G3498509

product price: $40.79
/ea

Key Features

Voltage Range
12-1000 AC V
Indication
Audible, Visual
Audible Alert
Yes
Battery Type
(2) AAA
Safety Rating
CAT IV 1000V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
NCVT-4IR
Zoro #
G3498509
UPC #
092644690617
Country of Origin
China

Dimensions

Length
6 1/4 in
Manufacturers Warranty Length
2 yr
Depth
1 3/16 in
Width
1 1/4 in
Tool Width
1.3 in
Battery Size
AAA
Manufacturer Warranty Length
2 yr
Tool Height
1.2 in
Tool Length
6.3 in

Details

Item
Voltage Tester
Voltage Range
12-1000 AC V
Indication
Audible, Visual
Audible Alert
Yes
Battery Type
(2) AAA
Safety Rating
CAT IV 1000V
Flashlight
No
On/Off Switch
No
Switch Type
Button for Range Selection
Operating Temp.
-22 Degrees to 482 Degrees F
Special Features
High-Pitched Continuous Beeping Sound
Includes
Batteries
Calibration Frequency
50 to 500 Hz
Features
Auto-Power Off Conserves and Extends Battery Life, Convenient Laser Pointer to Target Measurement Area for Temperature Measurement, Lightweight, Compact Tool with Pocket Clip Provides Easy Storage and Quick Access, Screw-Thread Battery Cap with O-Ring Ensures Dust and Water Resistance
Standards
CE
Auto Power Off
Yes
Minimum Operating Temperature
-22 Degrees F
Display Screen Type
LCD
Built-In Flashlight
No
IP Rating
IP54
Test Connection Type
Non-Contact Probe Tip
Maximum AC Voltage Measured
1,000 V
Power Source
Battery
Maximum Operating Temperature
482 Degrees F
Minimum AC Voltage Measured
12 V
Tester Type
Voltage Detector/Tester
CAT Safety Rating
CAT IV 1000V
Testing Functions
AC Voltage, DC Voltage
Number of Batteries Required
1
Alert Type
Digital Display
Display Type
Digital
Non-Contact
Yes
Includes Batteries
Yes
Maximum Operating Temperature
482 Degrees F

Description

Klein Tools NCVT-4IR is a voltage tester that provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires; as well as infrared (IR) thermometer measurements, making it the perfect choice for HVAC professionals.


•Voltage Tester designed specifically for HVAC applications
•Non-Contact Voltage Tester provides non-contact determination of AC voltage in cables, cords, circuit breakers, switches, outlets and wires, and AC voltage in security, entertainment, communications, environmental control, and irrigation systems
•Detects AC voltage from 12 to 1000V with visual and audible indicators
•4:1 distance-to-spot ratio IR thermometer with user selectable Degrees Fahrenheit or Degrees Celsius from -22 to 482-Degree Fahrenheit (-30 to 250-Degree Celsius)
•Convenient laser pointer to target measurement area for temperature measurement
•Backlit LCD display with 0.1-Degree resolution
•Auto power-off conserves and extends battery life
•Screw-thread battery cap with O-ring ensures dust and water resistance
•Lightweight, compact tool with pocket clip provides easy storage and quick access
