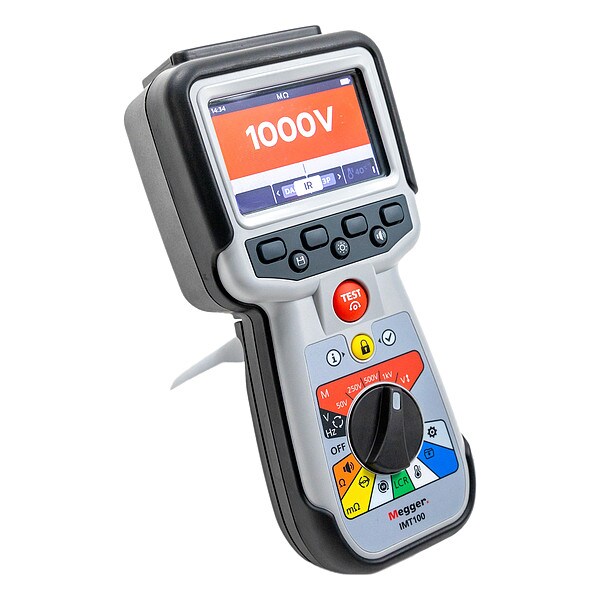

Megger Megohmmeter, 9 in H, 4.1 in L, 3 in W IMT100 - main

Megohmmeter, 9 in H, 4.1 in L, 3 in W

  • Mfr # IMT100

  • Zoro # G714795794

product price:  $2,939.99
/ea
Free Shipping & Returns

Key Features

Power Source
Battery
Includes
Carrying Case, Insulation Resistance Lead Set, Interchangeable Clips and Probes, Low Resistance Kelvin Clips and Probes, Photovoltaic Connectors, Temperature Probe
Insulation Limit Alarm
Yes
Features
Complete Suite of Insulation Resistance, Exceptionally Safe to Use, Full Set of Detachable Test Leads, Ready for Outdoor Conditions, Worry Free Battery Supply
Dustproof
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
IMT100
Zoro #
G714795794
UPC #
-
Country of Origin
United Kingdom

Dimensions

Battery Size
AA
Tool Height
9 in
Tool Width
3 in
Tool Length
4.1 in
Test Lead Length
2 m

Details

Item
Megohmmeter
Power Source
Battery
Includes
Carrying Case, Insulation Resistance Lead Set, Interchangeable Clips and Probes, Low Resistance Kelvin Clips and Probes, Photovoltaic Connectors, Temperature Probe
Insulation Limit Alarm
Yes
Features
Complete Suite of Insulation Resistance, Exceptionally Safe to Use, Full Set of Detachable Test Leads, Ready for Outdoor Conditions, Worry Free Battery Supply
Dustproof
Yes
USB Data Download Included
Yes
Backlit Digital Display
Yes
Test Current
200 mA
Pass/Fail Selection Limits
Yes
Maximum Operating Temperature
122 Degrees F
Maximum AC Voltage Measured
1,000 V
Number of Batteries Required
6
Minimum Capacitance Measured
1 nF
Resistance Accuracy
+/-10 Digits (DLRO Four Wire Kelvin Low Resistance), +/-2% +/-2 Digits +/-0.2% per gigaohm (200 gigaohm), +/-2% +/-2 Digits +/-0.4% per gigaohm (100 gigaohm), +/-2% +/-2 Digits +/-0.8% per gigaohm (50 gigaohm), +/-2% +/-2 Digits +/-2.0% per gigaohm (20 gigaohm), +/-2% +/-2 Digits +/-4.0% per gigaohm (10 gigaohm)
Maximum Capacitance Measured
10 uF
Waterproof
Yes
Testing Functions
AC Voltage, Stray Capacitance, Continuity, DC Voltage, Insulation Resistance, Low Resistance, Temperature
Minimum AC Voltage Measured
0 V
Minimum Insulation Resistance
100 ohm
Remote Test Probe Included
Yes
Number of Records Stored
256
Data Logger
Yes
Calibration Certificate
Included
Includes Software
Yes
Bluetooth Compatible
No
Display Screen Type
LCD
Minimum Operating Temperature
14 Degrees F
Battery Chemistry
Alkaline, Lithium, Nickel Metal Hydride
Maximum Insulation Resistance
200 gigohm
Parameters Measured
AC Voltage, Capacitance, Continuity, DC Voltage, Insulation Resistance, Low Resistance, Temperature (K)
Includes Batteries
Yes
Maximum DC Voltage Measured
1,000 V
Standards
IEC61010-1, IEC61326
Low Resistance Range
1 megaohm to 10 ohm
IP Rating
IP54
Timed Ramp Voltage Test
Yes
Test Voltage
1,000V DC, 250V DC, 500V DC, 50V DC
Communication Protocol
USB
CAT Safety Rating
CAT III 600V
Minimum DC Voltage Measured
0 V
Insulation Resistance Resolution
0.1 kiloohm
PI/DAR Testing
Yes
Greater Than 30V Warning
Yes
Display Type
Digital
Capacitance Auto Discharge
Yes
Operating Voltage
600V AC/DC
Data Output Type
USB
Live Circuit Voltage Measurement - Minimum
0 V
Minimum Ground Resistance Measurement
1 microohm
Calibration Certificate Included
Traceable without Data
Installation Tester Socket Region
EU, US
Maximum DC Current Measured
500 mA
Leakage Current Range
0.1 uA resolution 10% ( +/-3 digits)
Maximum AC Current Measured
10 mA
Maximum Ground Resistance Measurement
10 gigohm
Instrument Style
Handheld
Alert Type
Digital Display, Audible
Input Impedance
0.25 ohm
Live Circuit Voltage Measurement - Maximum
600 V AC/DC

Description

Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT III 600V, Calibration Certificate Included, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof Yes, Greater Than 30V Warning Yes, Includes Carrying Case, Insulation Resistance Lead Set, Interchangeable Clips and Probes, Low Resistance Kelvin Clips and Probes, Photovoltaic Connectors, Temperature Probe, Insulation Limit Alarm Yes, Maximum Insulation Resistance 200 gigohm
