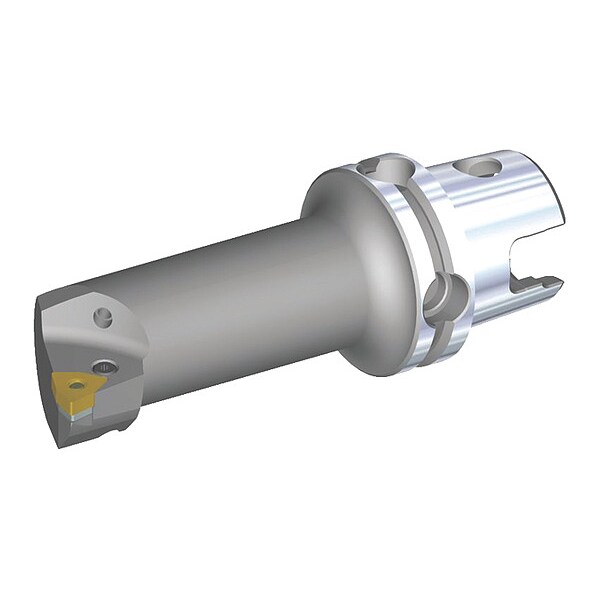

Indexable Cutting Head Unit, KM40TSS25EPWLNR08, 94.95mm L, Trigon Insert Shape
Mfr # KM40TSS25EPWLNR08
Zoro # G3570635
product price: $613.99
/ea
Free Shipping & Returns
Key Features
Overall Length
94.95mm
Insert Shape
Trigon
ANSI Code
KM40TSS25EPWLNR08
Shank Dia.
40.00mm
Cutting Direction
Right Hand
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
KM40TSS25EPWLNR08
Zoro #
G3570635
UPC #
4059782022508
Country of Origin
United States
Dimensions
Overall Length
94.95mm
Shank Dia.
40.00mm
Insert Size
080408 (432)
Insert Cutting Edge Length
8.69mm
Max. Bore Depth
55.09mm
Min. Bore Dia.
32.00mm
Connection Size
KM40TS
Details
Item
Indexable Cutting Head Unit
Insert Shape
Trigon
ANSI Code
KM40TSS25EPWLNR08
Cutting Direction
Right Hand
Rake
-12 Degrees Radial, -5 Degrees Axial
Center to Cutting Tip
17.00mm
Insert Holding Type
P-Clamping (Lever Lock or Lock Pin)
Coolant Fed
Coolant Through
Side Cutting Edge Angle
-5 Degrees
Insert Style
WN
ISO Number
KM40TSS25EPWLNR08
Insert Clearance Angle
0 Degrees
Number of Coolant Holes
1
Standards
ISO 26622
Approach Angle
95 Degrees
Cutting Application
Boring
Description
Indexable Cutting Head Unit, Insert Shape Trigon, Overall Length 94.95mm, KM40TSS25EPWLNR08, 95 Degrees , 17.00mm, Coolant Through, Boring, Right Hand
