Shop All Needle Roller Bearings
Koyo

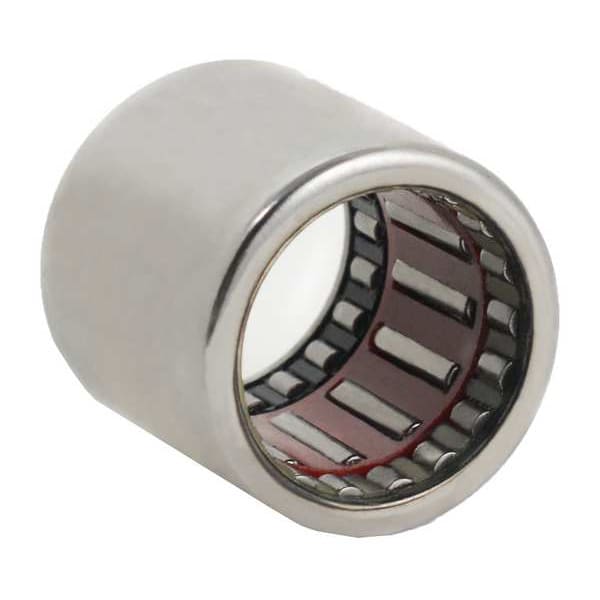

Needle Roller Brg, 61014, 3/8in Bore, Open

product price: $23.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Drawn Cup
  • Bore Dia. (In.) 0.375 in
  • Bore Dia. (mm) 9.53 mm
  • Outside Dia. (In.) 0.625 in
  • Outside Dia. (mm) 15.88 mm
See all product information

Product Information

Dimensions

Bore Dia. (In.) 0.375 in
Bore Dia. (mm) 9.53 mm
Outside Dia. (In.) 0.625 in
Outside Dia. (mm) 15.88 mm
Width (In.) 0.875 in
Width (mm) 22.23 mm
Outside Diameter 5/8 in
Overall Width 0.875 in
Bore Diameter 3/8 in

Details

Item Needle Roller Bearing
Type Drawn Cup
Torque 48.2 lb-in
Max. RPM 18,000 RPM
Static Load Capacity (Lb.) 1,100 lb
Cage Material Thermoplastic
Dynamic Load Capacity (N) 6,010 N
Static Load Capacity (N) 4,890 N
Dynamic Load Capacity (Lb.) 1,350 lb
Number of Rows Three
Full Complement No
Needle Bearing Type Drawn Cup Roller Clutch
System of Measurement Inch
Ring Material Grade SUJ 2
Minimum Temperature -22 Degrees F
Application Automobile Field, Drive-Lines, Engine, Industrial Machinery Field, Steering Systems, Transmission, Wind Power Generation
Ring Material Alloy Steel
Lubricant Material Grease, Oil
Bearing Design RCB
Dynamic Radial Load Capacity 1,350 lbf
Maximum Torque 48.2 in-lb
Maximum Speed 18,000 RPM
Roller Material Alloy Steel
Lubrication Openings Not Applicale
Roller Material Grade SUJ 2
Bearing Industry Number 61014
Static Radial Load Capacity 1,100 lbf
Closure Open
Maximum Temperature 200 Degrees F
Cage Material Grade Fiberglass Reinforced Nylon

Description

Needle Roller Bearing, Bearing Industry Number 61014, Bearing Design RCB, Bore Diameter 3/8 in, Cage Material Thermoplastic, Closure Open, Full Complement No, Lubricant Material Grease, Oil, Maximum Speed 18,000 RPM, Maximum Temperature 200 Degrees F, Minimum Temperature -22 Degrees F, Needle Bearing Type Drawn Cup Roller Clutch, Number of Rows Three, Outside Diameter 5/8 in, Overall Width 0.875 in, Ring Material Alloy Steel, Roller Material Alloy Steel, Seal Type Not Applicable
