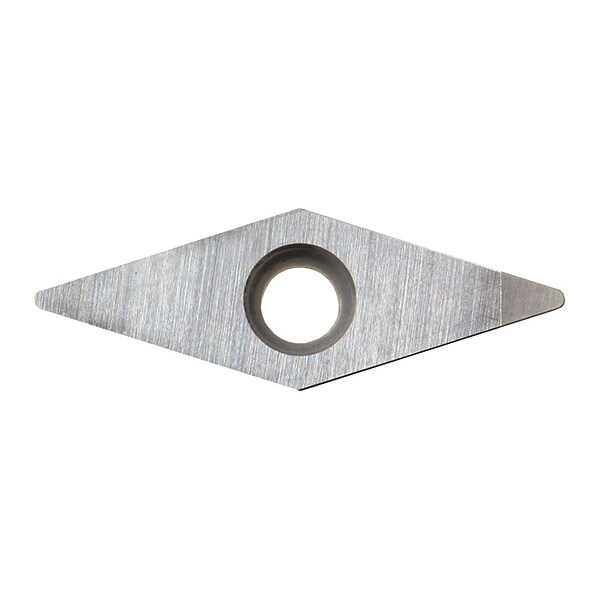

Diamond Turning Insert, Diamond, 2, 2

Mfr # VBGW222S00435SETKBN25M
Zoro # G3648049

55.59

Key Features

Insert Shape

Diamond

Inscribed Circle

1/4 in

Chip-Breaker

Yes

Corner Radius

1/32 in

Rake

Positive

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VBGW222S00435SETKBN25M
Zoro #: G3648049
UPC #: -
Country of Origin: China

Dimensions

Corner Radius: 1/32 in
Thickness: 1/8 in
Through Hole Inside Dia.: 0.1102"

Details

Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 1/4 in
Chip-Breaker: Yes
Rake: Positive
ISO Number: VBGW110308S00435 SET
Cutting Direction: Neutral
Features: Heat-Resistant Megacoat
Insert Holding Type: Screw
ANSI Code: VBGW222S00435SET
Finish - Machining: Megacoat
Measurement System: Fractional Inch
Cutting Application: Back Boring, Copying, External Turning, Facing, Internal Facing, Profiling, Undercutting
Material - Machining: CBN
Chip-Breaker Code: SET
General Shape: Diamond
Shape: Diamond
Manufacturer Grade: KBN25M
Clearance Angle: 5 Degrees
Included Angle: 35 Degrees
Primary Material Application: Hardened Steel
Chip-Breaker Style: Finishing
Number of Cutting Edges: 1
Cutting Edge: Small Edge; Tough
Primary Material Application ISO Code: H
Hole Type: 40 Degrees to 60 Degrees Countersink Through Hole

Description

Diamond Turning Insert, Chip-Breaker Code SET, Inscribed Circle 1/4 in, Megacoat, ANSI Code VBGW222S00435SET, Chip-Breaker Style Finishing, Clearance Angle 5 Degrees
