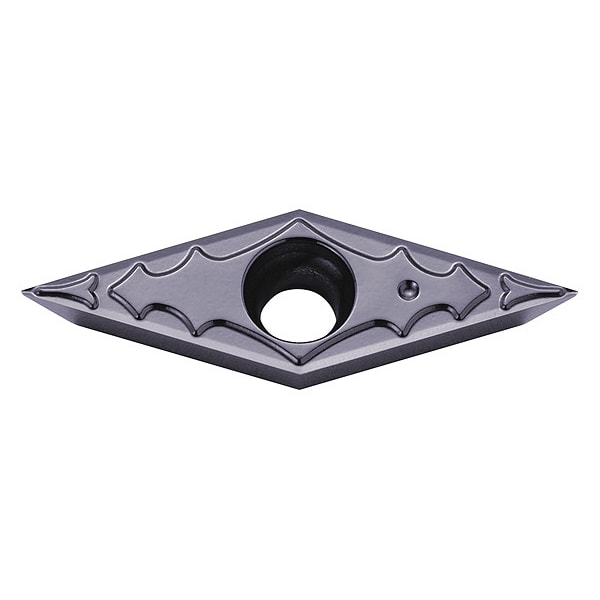

Diamond Turning Insert, Diamond, 2, .5

Mfr # VPGT2205MPCFPR1225
Zoro # G7984647

23.89

Sold in multiples of 10 for $238.90

Key Features

Insert Shape

Diamond

Inscribed Circle

1/4 in

Chip-Breaker

Yes

Corner Radius

0.0079 in

Rake

Positive

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: VPGT2205MPCFPR1225
Zoro #: G7984647
UPC #: -
Country of Origin: Multiple

Dimensions

Corner Radius: 0.0079 in
Thickness: 1/8 in
Through Hole Inside Dia.: 0.1102"

Details

Item: Diamond Turning Insert
Insert Shape: Diamond
Inscribed Circle: 1/4 in
Chip-Breaker: Yes
Rake: Positive
ISO Number: VPGT110302MP-CF
Cutting Direction: Neutral
Features: Superior Wear and Oxidation Resistance
General Shape: Diamond
Chip-Breaker Code: CF
Insert Holding Type: Screw
Finish - Machining: Megacoat
Hole Type: 40 Degrees to 60 Degrees Countersink Through Hole
Measurement System: Fractional Inch
Clearance Angle: 11 Degrees
Secondary Material Application: Stainless Steel
Material - Machining: Carbide
Primary Material Application: Steel
ANSI Code: VPGT2205MPCF
Included Angle: 35 Degrees
Primary Material Application ISO Code: P
Shape: Diamond
Number of Cutting Edges: 2
Cutting Application: Back Boring, Copying, External Turning, Facing, Internal Facing, Interrupted Cutting, Profiling, Undercutting
Cutting Edge: Minus Tolerance Corner Radius; Polished; Sharp Edge
Coating Process: PVD
Secondary Material Application ISO Code: M
Manufacturer Grade: PR1225

Description

Diamond Turning Insert, Chip-Breaker Code CF, Inscribed Circle 1/4 in, Megacoat, ANSI Code VPGT2205MPCF, Clearance Angle 11 Degrees , Coating Process PVD
