Shop KYOCERA

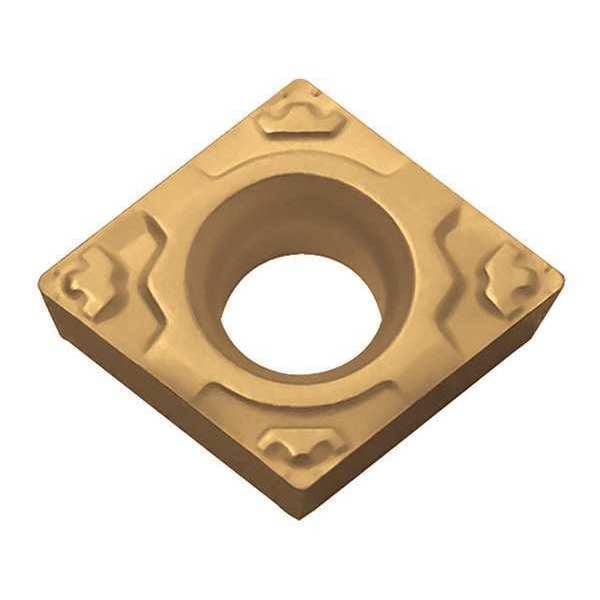

Diamond Turning Insert, Diamond, 3, CPMT, 2, Carbide

  • Mfr # CPMT322GP CA525

  • Zoro # G7429296

product price:  $12.99
/ea
Sold in multiples of 10 for $129.90

Key Features

Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3/8 in
Insert Size
322
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CPMT322GP CA525
Zoro #
G7429296
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
322
Corner Radius
1/32 in
Nose Radius
0.0313"
Mounting Hole Dia.
0.173"
Insert Thickness
0.1250"
Thickness
1/8 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
3/8 in
Chip-Breaker
Yes
Grade
CA525
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
CPMT090308GP
For Use With
Toolholders, Boring Bars
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Coating
TiCN/Al2O3/TiN
Cast Iron (K) Compatibility
No
Relief Angle
11 Degrees
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
ANSI Number
CPMT322GP-CA525
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Workpiece Compatibility
Steel (P)
No. of Edges
2
Chip-Breaker Code
GP
Chip-Breaker Style
Molded, On One Side
Finish - Machining
TiCN+Al2O3+TiN
Measurement System
Fractional Inch
Primary Material Application
Steel
Material - Machining
Carbide
Insert Holding Type
Screw
Number of Cutting Edges
2
Clearance Angle
11 Degrees
Manufacturer Grade
CA525
Included Angle
80 Degrees
Primary Material Application ISO Code
P
ANSI Code
CPMT322GP CA525
Cutting Application
Turning
Shape
Rhombic
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code GP, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code CPMT322GP CA525, Chip-Breaker Style Molded, On One Side, Clearance Angle 11 Degrees
