  11. Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

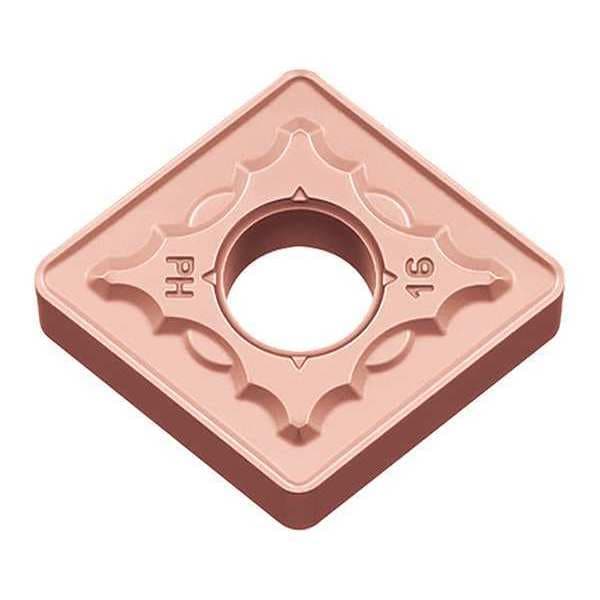

Kyocera Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide CNMG432PHCA310 - main

Diamond Turning Insert, Diamond, 4, CNMG, 2, Carbide

  • Mfr # CNMG432PHCA310

  • Zoro # G7380436

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG432PHCA310
Zoro #
G7380436
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
CA310
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMG120408PH
ANSI Number
CNMG432PH-CA310
For Use With
Toolholders, Boring Bars
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Coating
TiCN/Al2O3
Stainless (M) Compatibility
No
Steel (P) Compatibility
No
No. of Edges
4
Workpiece Compatibility
Cast Iron (K)
Mounting Style
Clamp
Relief Angle
0 Degrees
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Secondary Material Application
Cast Iron
Primary Material Application
Cast Iron
Measurement System
Fractional Inch
Chip-Breaker Code
PH
Primary Material Application ISO Code
K
Shape
Rhombic
ANSI Code
CNMG432PH
Cutting Application
Turning
Secondary Material Application ISO Code
K
Insert Holding Type
Screw
Clearance Angle
0 Degrees
Included Angle
80 Degrees
Chip-Breaker Style
Molded, On Two Sides
Manufacturer Grade
CA310
Number of Cutting Edges
4
Material - Machining
Carbide
Finish - Machining
TiCN+Al2O3+Ti
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code PH, Inscribed Circle 1/2 in, TiCN+Al2O3+Ti, ANSI Code CNMG432PH, Chip-Breaker Style Molded, On Two Sides, Clearance Angle 0 Degrees
