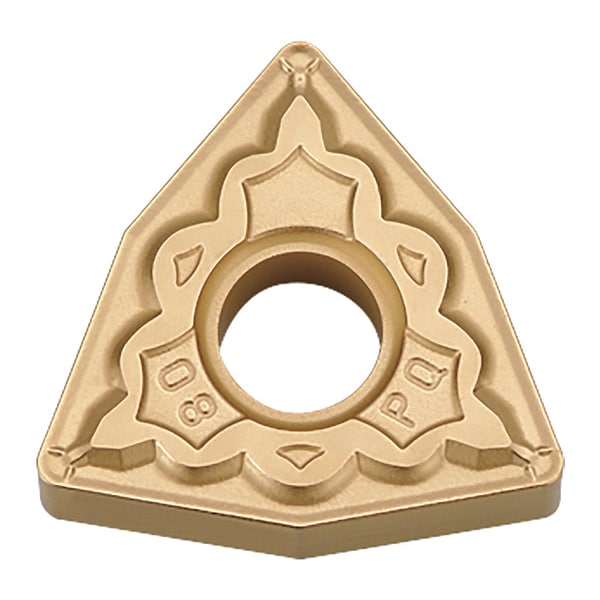

Diamond Turning Insert, Trigon, 4, 2

  • Mfr # WNMG432PQCA025P
  • Zoro # G7430527
product price:
$
12.65
/ea
Sold in multiples of 10 for $126.50

Key Features

Insert Shape
Trigon
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Corner Radius
1/32 in
Rake
Negative
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WNMG432PQCA025P
Zoro #
G7430527
UPC #
-
Country of Origin
Multiple
Item
Diamond Turning Insert
Insert Shape
Trigon
Inscribed Circle
1/2 in
Chip-Breaker
Yes
Rake
Negative
ISO Number
WNMG080408PQ
Cutting Direction
Neutral
Features
Thickened Alumina with Good Thermal Resistance (Twice as Thick as Conventional Coating) and Specialized Post-Coating Process Prevents Adhesion
Shape
Trigon
Insert Holding Type
Screw
Hole Type
Straight Hole
Finish - Machining
TiCN+Al2O3+TiN
Material Grade - Machining
Micro Columnar Coating Structure
General Shape
Trigon
Material - Machining
Carbide
Cutting Application
Boring, External Turning, Facing, General to Interrupted Cutting, Internal Facing
Chip-Breaker Style
Medium Finishing
Primary Material Application
Steel
Manufacturer Grade
CA025P
Primary Material Application ISO Code
P
Coating Process
CVD
ANSI Code
WNMG432PQ
Included Angle
80 Degrees
Clearance Angle
0 Degrees
Chip-Breaker Code
PQ
Measurement System
Fractional Inch
Number of Cutting Edges
6

Description

Diamond Turning Insert, Chip-Breaker Code PQ, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN, ANSI Code WNMG432PQ, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process CVD
