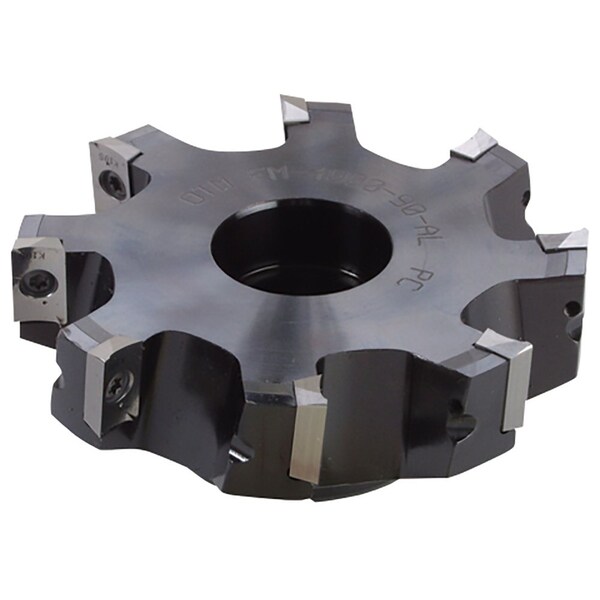

Face Mill, FM 300090AL, FM-AL 300" Dia.
Mfr # FM300090AL
Zoro # G3831933
product price:Â $661.99
/ea
Free Shipping & Returns
Key Features
Depth of Cut
0.6400 in
Overall Length
1.5748 in
Insert Size
1604
Cutting Direction
Right Hand
Features
8 Degrees Max. Ramping Angle, Standard Pitch
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- FM300090AL
- Zoro #
- G3831933
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Depth of Cut
- 0.6400 in
- Overall Length
- 1.5748 in
- Insert Size
- 1604
- Max. Cutting Dia.
- 3 in
- Arbor Dia.
- 1 in
Details
- Item
- Indexable Face Mill
- Cutting Direction
- Right Hand
- Features
- 8 Degrees Max. Ramping Angle, Standard Pitch
- ANSI Code
- FM300090AL
- Cutting Application
- Aluminum Milling, Face Milling, Ramping, Shoulder Milling, Slotting
- Side Cutting Edge Angle
- 90 Degrees
- Insert Style
- APET
- Insert Holding Type
- Screw
- ISO Number
- FM300090AL
- Coolant Fed
- Non-Coolant Through
- Number of Inserts
- 6
- Rake
- 0 Degrees Radial, 5 Degrees Axial
Description
Indexable Face Mill, Max. Cutting Dia. 3 in, Arbor Dia. 1 in, Depth of Cut 0.6400 in, ANSI Code FM300090AL, Coolant Fed Non-Coolant Through, Cutting Application Aluminum Milling, Face Milling, Ramping, Shoulder Milling, Slotting
