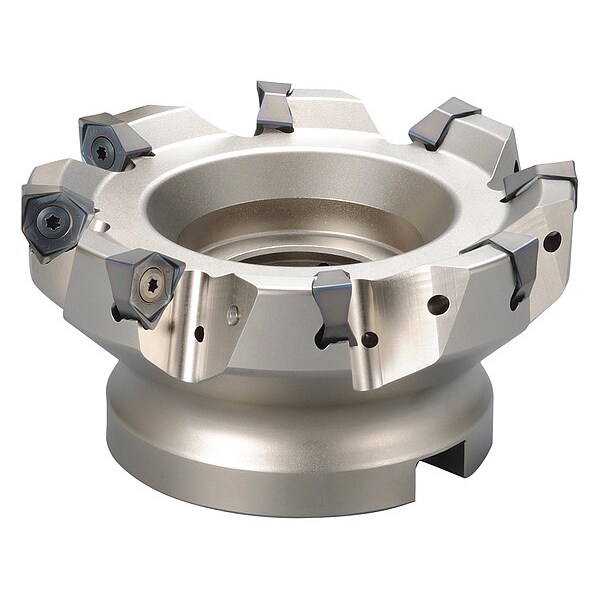

Face Mill, MFWN 90100R7T, M-SIX 100mm
Mfr # MFWN90100R7T
Zoro # G3833927
product price:Â
$
1,181.99
/ea
Free Shipping & Returns
Key Features
Depth of Cut
8.00mm
Overall Length
50.00mm
Insert Size
080608
Cutting Direction
Right Hand
Features
Double-Sided 6-Edge Inserts, Fine Pitch, Resistant to Chattering and Applicable to Long Overhang, Sharp Cutting Due to Lower Cutting Forces
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MFWN90100R7T
- Zoro #
- G3833927
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Depth of Cut
- 8.00mm
- Overall Length
- 50.00mm
- Insert Size
- 080608
- Max. Cutting Dia.
- 100.00mm
- Arbor Dia.
- 1 1/4 in
- Wire Rope Length
- 50.00mm
- Length
- 50.00mm
Details
- Item
- Indexable Face Mill
- Cutting Direction
- Right Hand
- Features
- Double-Sided 6-Edge Inserts, Fine Pitch, Resistant to Chattering and Applicable to Long Overhang, Sharp Cutting Due to Lower Cutting Forces
- Number of Inserts
- 7
- ISO Number
- MFWN90100R-7T
- Rake
- -8 Degrees Radial, 13 Degrees Axial
- ANSI Code
- MFWN90100R7T
- Insert Holding Type
- Screw
- Cutting Application
- Face Milling, Plunge Cutting, Shoulder Milling, Slotting
- Side Cutting Edge Angle
- 90 Degrees
- Coolant Fed
- Coolant Through
- Insert Style
- WNEU; WNGT; WNMU
Description
Indexable Face Mill, Max. Cutting Dia. 100.00mm, Arbor Dia. 1 1/4 in, Depth of Cut 8.00mm, ANSI Code MFWN90100R7T, Coolant Fed Coolant Through, Cutting Application Face Milling, Plunge Cutting, Shoulder Milling, Slotting
