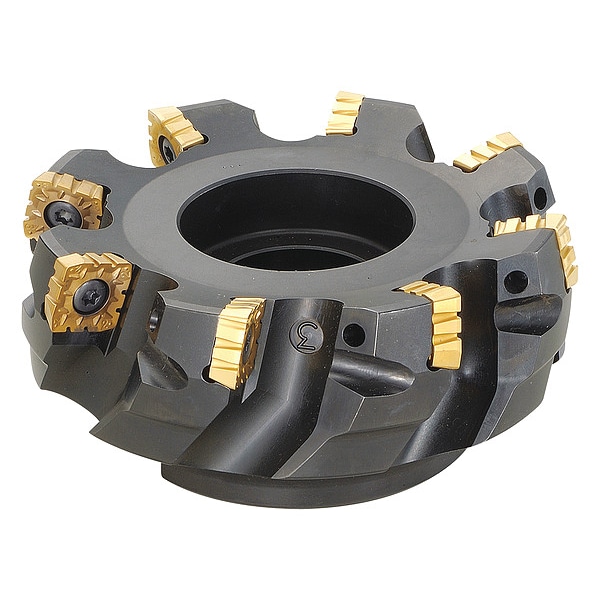

Face Mill, MSRS 15100R6T, MSRS15 100m
Mfr # MSRS15100R6T
Zoro # G3833026
product price:Â $1,279.99
/ea
Free Shipping & Returns
Key Features
Depth of Cut
12.00mm
Overall Length
50.00mm
Cutting Direction
Right Hand
Insert Size
1806
Features
Fine Pitch, Large Depths of Cut and High Feed Rates, Notched Inserts Reduce Cutting Forces When Entering the Workpiece, Smooth Chip Evacuation Prevents Fracturing Caused by Biting Chips, Stable Machining Without Chattering
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MSRS15100R6T
- Zoro #
- G3833026
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Depth of Cut
- 12.00mm
- Overall Length
- 50.00mm
- Insert Size
- 1806
- Max. Cutting Dia.
- 107.00mm
- Hub Outside Dia.
- 107.00mm
- Arbor Dia.
- 1 1/4 in
- Min. Cutting Dia.
- 100.00mm
- Wire Rope Length
- 50.00mm
Details
- Item
- Indexable Face Mill
- Cutting Direction
- Right Hand
- Features
- Fine Pitch, Large Depths of Cut and High Feed Rates, Notched Inserts Reduce Cutting Forces When Entering the Workpiece, Smooth Chip Evacuation Prevents Fracturing Caused by Biting Chips, Stable Machining Without Chattering
- Number of Inserts
- 6
- Insert Holding Type
- Screw
- Cutting Application
- Face Milling, Heavy Milling
- Rake
- -5 Degrees Radial, 9 Degrees Axial
- ANSI Code
- MSRS15100R6T
- Side Cutting Edge Angle
- 75 Degrees
- Coolant Fed
- Non-Coolant Through
- ISO Number
- MSRS15100R-6T
- Insert Style
- SPMT
Description
Indexable Face Mill, Max. Cutting Dia. 107.00mm, Arbor Dia. 1 1/4 in, Depth of Cut 12.00mm, ANSI Code MSRS15100R6T, Coolant Fed Non-Coolant Through, Cutting Application Face Milling, Heavy Milling
