  9. Digital Panel Meter, LCD, 7 to 14VDC

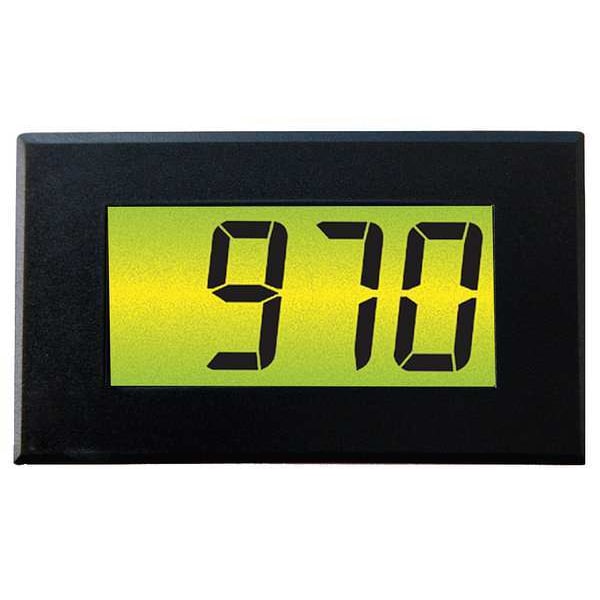

Lascar Digital Panel Meter, LCD, 7 to 14VDC DPM-970 - main

Digital Panel Meter, LCD, 7 to 14VDC

  • Mfr # DPM-970

  • Zoro # G8374134

product price: $131.49
/ea
Free Shipping & Returns

Key Features

Type
DC Voltage
Input Range
7 to 14V DC
Accuracy
1.5% Reading +/-2 Count
Display Span
1999
Display
LCD
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DPM-970
Zoro #
G8374134
UPC #
-
Country of Origin
China

Dimensions

Depth
1 in
Manufacturers Warranty Length
1 yr
Overall Height
2.99 in
Cutout Height
2 55/64 in
Digit Height - Maximum
0.75 in
Overall Depth
1.73 in
Cutout Width
1 19/32 in

Details

Item
Voltmeter
Type
DC Voltage
Input Range
7 to 14V DC
Accuracy
1.5% Reading +/-2 Count
Display Span
1999
Display
LCD
Display Digits
4
Style
Panel
Connector Type
Screw Terminal
True RMS
Yes
NEMA Rating
BS EN61010
Includes
Mounting Brackets
Excitation
No
Mounting
Panel Cutout
Process Connection
No
Fits
72mm x 40mm DIN
Use With
Mfr. No. BEZ 900-IP
Power Required
7 to 14V DC
Standards
7 to 14V DC
Series
Panel
Voltage Display - Maximum
1,999 V AC
Includes Mounting Hardware
Included
Terminal Connection Type
Screw Clamp
Number of Display Digits
3.5
AC Voltage Input - Maximum
500 V AC
Voltage Display - Minimum
0 V AC
Digital Display Screen Color
Black
Display Span - Minimum
-1,999
NEMA Enclosure Rating
Not Rated
AC Voltage Input - Minimum
0 V AC
Digital Display Screen Type
LCD with Backlight
AC Magnitude Calculation
True RMS
Display Span - Maximum
1,999
Parameters Measured
AC Voltage
Product Type
Voltmeter
Display Features
High Contrast

Description

Voltmeter, DC Voltage, Input Range 7 to 14V DC, Accuracy 1.5 Percent Reading +/-2 Count, Display Span 1999, Display Digits 4, LCD Display, True RMS Yes, No Excitation, Use With Mfr. No. BEZ 900-IP, Fits 72mm x 40mm DIN Cutout, Connector Type Screw Terminal, Process Connection No, Power Required 7 to 14V DC, BS EN61010 NEMA Rating, Depth 1 in, Mounting Panel Cutout, Style Panel, Includes Mounting Brackets, Manufacturers Warranty Length 1 yr
