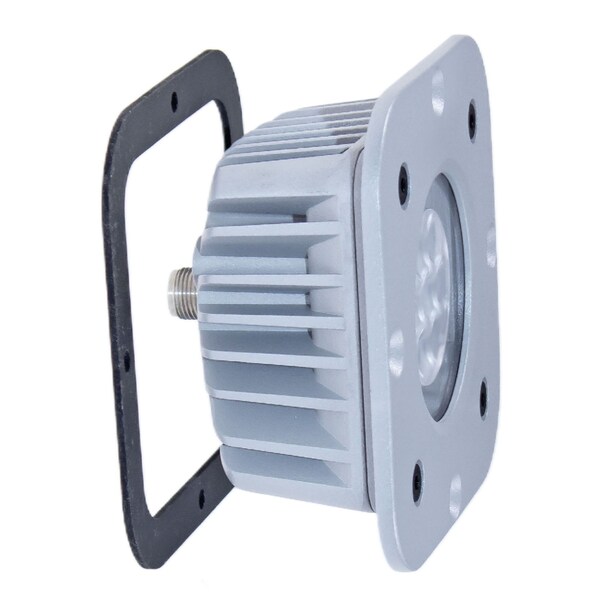

Machine light CENALED SPOT Recessed DC recessed light, optics 65Deg
Mfr # 121013-05
Zoro # G114643220
product price:Â
$
304.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~8.5 W
Dimmable
Optional via accessories
Color Temperature
Neutral white (5000K)
Lumens
1120 lm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 121013-05
- Zoro #
- G114643220
- UPC #
- -
- Country of Origin
- Germany
- Voltage
- 24V DC ± 10%
- Watts
- ~8.5 W
- Dimmable
- Optional via accessories
- Color Temperature
- Neutral white (5000K)
- Lumens
- 1120 lm
- Material
- Aluminum (powder-coated)
- IP Rating
- IP67
- Standards
- CE, UKCA, ETL Listed (5003529)
- Features
- 65° optics for full flat light
- Beam Angle
- 65°
- Type
- LED recessed light
- Rated Life
- Greater than 60.000 hr (L80/B10)
- Cascadable
- No
- Connection
- M12 A-coded
- Cover Material
- Safety glass 4 mm (0,16"), crack-resistant
- Energy Efficiency
- 134-lm/W
- Color Rendering (Ra)
- >80
- Operating Temperature
- -10 °C to +50 °C (14 °F to 122 °F)
- Class of Protection
- III
- Model
- CENALED SPOT Recessed
Description
The CENALED SPOT DC is a high-intensity LED luminaire with a high degree of protection - suitable for original equipment manufacturers or for retrofitting in the machine sector. Thanks to IP67 - i.e. dust and water protected - and robust aluminum housing with strong safety glass, the luminaire can also be used in areas where the going gets rough - such as in automatic drilling machines and CNC or milling machines. The compact luminaire is available as a recessed and surface-mounted version. Depending on the variant, an area can be illuminated with pinpoint accuracy or over a medium area. Depending on requirements, both versions are available with 15Deg, 30Deg and 65Deg optics. The luminaire - whether recessed or surface-mounted - is connected via an A-coded M12 plug connection with reverse polarity protection.The CENALED SPOT Recessed DC is mounted with four M5 countersunk screws in a mounting shaft or opening measuring at least 81 mm x 81 mm. A supplied gasket behind the luminaire bezel seals the luminaire to the rear.
