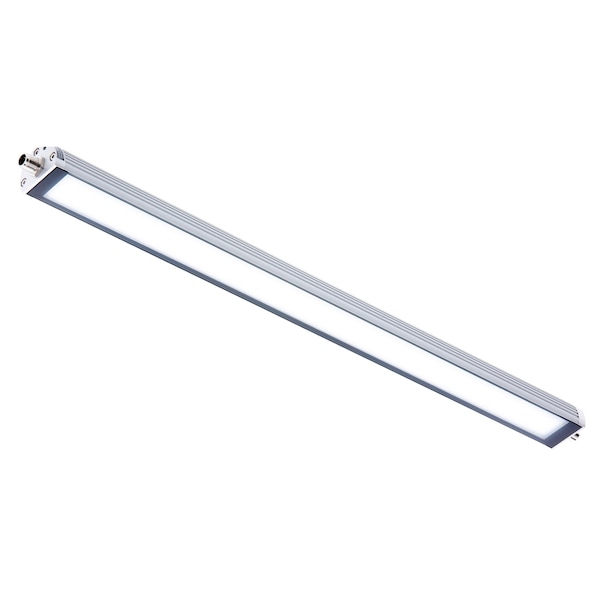

TUBELED 40 II ECO, 365 mm 14, 37'', cascadable
- Mfr # 118210-12
- Zoro # G214643267
product price:Â
$
255.99
/ea
Free Shipping & Returns
Key Features
Voltage
24V DC ± 10%
Watts
~8.5 W
Lumens
1336 lm
Special Features
Resistant To High Temperatures, Cascadable
Average Life
> 60.000 h (L80/B10)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 118210-12
- Zoro #
- G214643267
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 365 mm (~14.37")
- Size
- 29 mm x 40 mm (~1.14" x ~1.57")
Details
- Voltage
- 24V DC ± 10%
- Watts
- ~8.5 W
- Lumens
- 1336 lm
- Special Features
- Resistant To High Temperatures, Cascadable
- Average Life
- > 60.000 h (L80/B10)
- Mounting Type
- LED surface-mounted light for machines
- Dimmable
- Optional via accessories
- IP Rating
- IP67/IP69K
- Color Temperature
- 5200 K to 5700 K
- Standards
- CE, UKCA, ETL Listed (5003529)
- Tube Material
- Aluminum
- Connection
- M12 A-coded
- Beam Angle
- 100°
- Cover Material
- Safety glass, 4 mm (0,16")
- Model
- TUBELED_40 II ECO, cascadable
- Cascadable
- Yes
- Glare Control
- Diffused Safety Glass
- Color Rendering (Ra)
- >85
- Class of Protection
- III
- Operating Temperature
- -30 °C to +70 °C (-22 °F to 158 °F)
- Energy Efficiency
- ~155 lm/W
Description
LED machine luminaire TUBELED_40 II - cascadable, high-intensity, ECO version, daylight white, only approx. 30 mm flat, IP 67/IP69K, oil-resistant, chip-proof, CNC suitable, cascadable.The new generation of LED machine lights: Flat design, oil as well as coolant and lubricant resistance, high temperature resistance, crack-proof tempered glass and the associated high degree of protection make the performance-optimized luminaire the 1st choice for illuminating work areas in machines. Recommended for original equipment or retrofitting!Cascadable: several luminaires of this series can be electrically linked via an additional output and M12 plug connector. up to a total current consumption of max. 4 A at 40DegC
