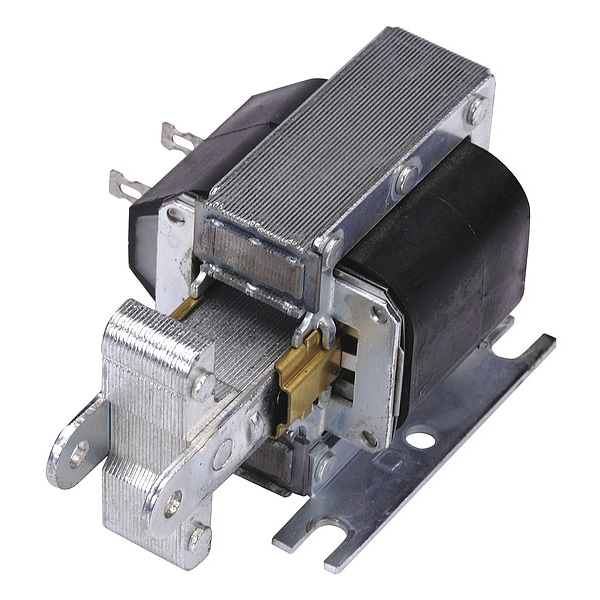

Solenoid, Intermittent, AC Laminate Pull Type, 64 oz
Mfr # 1750-A-1
Zoro # G8274956
product price:
$
82.35
/ea
Key Features
Duty Cycle
Intermittent
Standards
RoHS
Pull @ 1/4 In. Stroke
77 oz
Pull @ 1/8 In. Stroke
110 oz
Amps @ Max. Stroke
2.6 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1750-A-1
- Zoro #
- G8274956
- UPC #
- -
- Country of Origin
- United States
- Item
- Solenoid
- Duty Cycle
- Intermittent
- Standards
- RoHS
- Pull @ 1/4 In. Stroke
- 77 oz
- Pull @ 1/8 In. Stroke
- 110 oz
- Amps @ Max. Stroke
- 2.6 A
- Material of Construction
- Steel
- Coil Resistance
- 40.5 ohms
- Coil Volts
- 120 V AC
- Solenoid Type
- AC Laminate Pull Type
- Seated Watts
- 17.7 W
- Stroke Range
- 0 to 0.75 in
- Pull Force Range
- 16.0 to 128.0 oz
- Pull @ 3/8 In. Stroke
- 64 oz
- Max. On Time
- 180 sec
- Seated Amps
- 0.5 A
- Coil Insulation
- Class 105; Class A
- Pull @ 1/16 In. Stroke
- 168 oz
- Terminals
- Solder Lug Coil
- From Mounting Holes to Plunger Hole
- 107/200 in
- Mounting Holes
- 4x Ø.156 thru
- Pull @ 1/2 In. Stroke
- 64 oz
- Pull @ 5/8 In. Stroke
- 52 oz
- Pull @ 3/4 In. Stroke
- 32 oz
Description
Solenoid, AC Laminate Pull Type, Stroke Range 0 to 0.75 in, Pull Force Range 16.0 to 128.0 oz, Width 1 609/1000 in, Depth 1 427/1000 in, Length 1 219/500 in, Coil Volts 120 V AC, Seated Amps 0.5 A, Seated Watts 17.7 W, Coil Resistance 40.5 ohms, Coil Insulation Class 105; Class A, Terminals Solder Lug Coil, Amps @ Max. Stroke 2.6 A, Duty Cycle Intermittent, Max. On Time 180 sec, Material of Construction Steel, Mounting Holes 4x �.156 thru, 107/200 in From Mounting Holes to Plunger Hole
