Shop LEDVANCE/ SYLVANIA

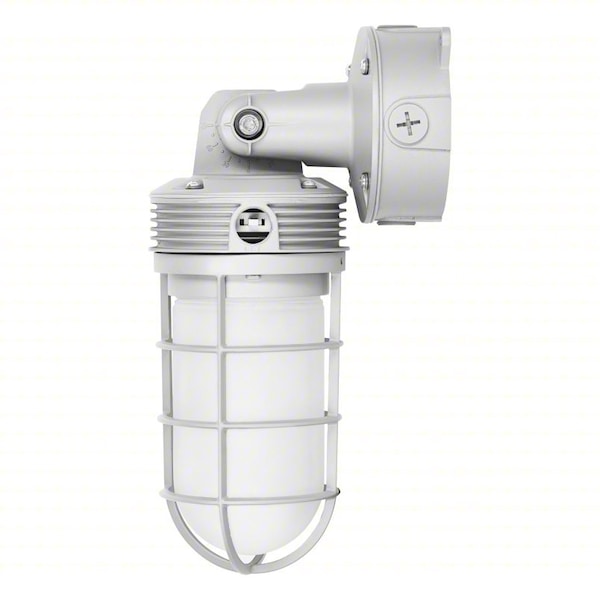

Wall Packs, LED, Pendant; Surface Mount

  • Mfr # JELYJAR2A/S020UNHD8SC2/GR

  • Zoro # G816560931

product price:  $90.79
/ea

Key Features

Voltage
120 to 347V AC
Width
4.4 in
Height
13.20 in
Light Technology
LED
Watts
10.00/20.00 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JELYJAR2A/S020UNHD8SC2/GR
Zoro #
G816560931
UPC #
046135624483
Country of Origin
Viet Nam

Dimensions

Width
4.4 in
Height
13.20 in
Mounting Height - Maximum
10 ft
Knockout Size
3/4 in
Overall Width
4 3/8 in
Overall Height
13 1/4 in
Overall Length
6 1/2 in
Hub Size
1/2 in NPT
Manufacturers Warranty Length
5 yr
Dia. (In.)
4.4 in
Wire Rope Length
6 1/2 in

Details

Item
Wall Packs
Voltage
120 to 347V AC
Light Technology
LED
Watts
10.00/20.00 W
Lumens
1600/800
Finish
Gray
Number of Knockouts
4
Includes Lamp
Integrated
Lumen Selectable
Selectable
IP Rating
IP65
Mount Type
Pendant, Surface
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
122 Degrees F
Incandescent Wattage Equivalency
75 W, 150 W
Standards
cULus, FCC, RoHS
Color Rendering Index
80
Light Output
1,000 lm, 2,000 lm
Power Source
Hardwired
Color Selectable
Selectable
Fixture Lens Material
Glass
Number of Hubs
1
Rated Life
50,000 hr
Sensor Type
Not Sensor Compatible
Housing Material
Aluminum
Housing Color
Gray
Fixture Wattage
20 W
For Location
Outdoor
Color Temperature
3000K, 4000K, 5000K
CRI
80
Fixture Rated Life
50,000 hr
Operating Temp. Range
-40 °F to 122°F
Power Factor
≥ 0.90
Lamp Type
SMD
Efficacy (LPW)
80 lm/W
Total Harmonic Distortion
< 20 %
Mounting
Surface
Power Source - TS Only
Hardwired

Description

Wall Packs, Fixture Wattage 20 W, Voltage 120 to 347V AC, Light Technology LED, Color Temperature 3000K, 4000K, 5000K, Color Rendering Index 80, Includes Lamp Integrated, Rated Life 50,000 hr, Fixture Lens Material Glass, IP Rating IP65, Standards cULus, FCC, RoHS
