Leeson

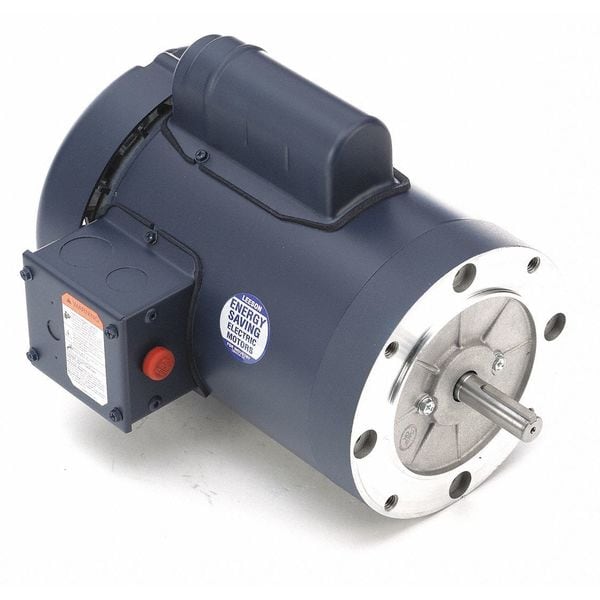

50 Hz Motor, 1 HP, 1425,110/220 V, 56C, TEFC

product price: $588.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design Capacitor-Start
  • Motor Enclosure Design Totally Enclosed Fan-Cooled
  • HP 1
  • Nameplate RPM 1,425
  • Frame 56C
See all product information

Product Information

Dimensions

Length Less Shaft 10 3/4 in
Shaft Length 1 7/8 in
Shaft Dia. 5/8 in
Overall Length 12 1/2 in

Details

Motor Design Capacitor-Start
Motor Enclosure Design Totally Enclosed Fan-Cooled
HP 1
Nameplate RPM 1,425
Frame 56C
Voltage 110/220V AC
Phase Single
Motor Thermal Protection Manual
Motor Mounting Type Face
Full Load Amps 12.8/6.4 A
No. of Speeds 1
Motor Application General Application
Ins. Class F
Motor Bearings Ball
Motor Mounting Position Horizontal
Hz 50 Hz
Item 50 Hz Motor
Motor Shaft Design Keyed
RPM Range 1,401-1,500
Voltage Compatibility 110/220-230V AC, 110/220V AC
Motor Shaft Rotation CW/CCW
Motor Service Factor 1
Ambient Temperature 40 Degrees C
Nominal Efficiency 73 %
Max. Ambient Temp. 104 Degrees F
Weight 37 lb
Duty Cycle Continuous
Usable @ 208V No
RPM @ 50Hz 1,425
Usable @ 200V No
Service Factor @ 50Hz 1
Voltage @ 50Hz 110/220V AC
Full Load Amps @ 50Hz 12.8/6.4 A
Motor Frame Material Steel
HP @ 50Hz 1
NEMA Design None
Standards CE Certified, CSA Certified, UL Listed

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,425, No. of Speeds 1, Voltage 110/220V AC, Full Load Amps 12.8/6.4 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Mounting Position Horizontal
