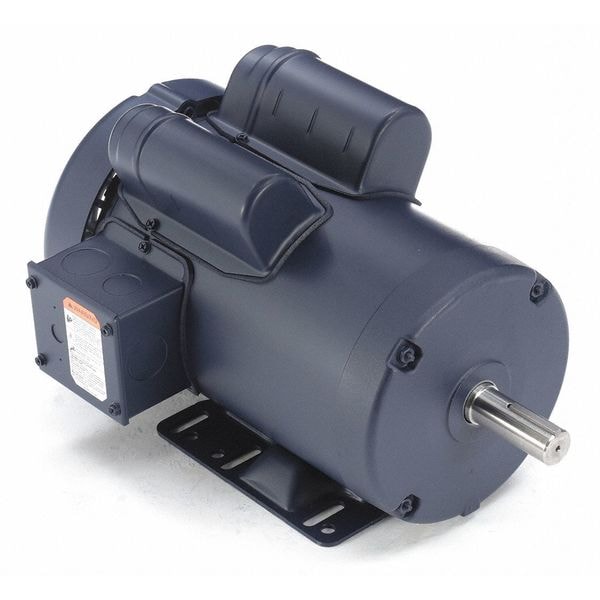

50 Hz Motor, 3 HP, 2850, 220 V, 145T, TEFC

LEESON| Zoro #: G1426327| Mfr #: 121070.00

$303.46 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1426327 Mfr #: 121070.00
Hz: 50Motor Application: General Application
Motor Bearings: BallMotor Mounting Position: All Angle
Item: 50 Hz MotorMotor Shaft Design: Keyed
No. of Speeds: 1Ambient Temperature: 40 Degrees C
Motor Enclosure Design: Totally Enclosed Fan-CooledMotor Shaft Rotation: CW/CCW
Phase: 1Motor Design: Capacitor-Start
Nameplate RPM: 2850Voltage Compatibility: 220 50Hz
HP: 3Ins. Class: F
Full Load Amps: 12.4Motor Service Factor: 1.00
Motor Thermal Protection: NoneMotor Mounting Type: Rigid Base
Length Less Shaft: 12-1/4"Shaft Dia.: 7/8"
Frame: 145TVoltage: 220
Shaft Length: 2-1/4"Footnotes: 24
Country of Origin (subject to change): United States

Product Description

50 Hz Motor, Capacitor-Start, Totally Enclosed Fan-Cooled, 3 HP, No. of Speeds 1, Nameplate RPM 2850, Voltage 220, Hz 50, 1 Phase, Full Load Amps 12.4, 145T Frame, Motor Mounting Type Rigid Base, Motor Mounting Position All Angle, Motor Thermal Protection None, Ins. Class F, 1.00 Motor Service Factor, Motor Bearings Ball, Motor Shaft Rotation CW/CCW, Motor Shaft Design Keyed, Ambient Temperature 40 Degrees C, Shaft Dia. 7/8 In., Shaft Length 2-1/4 In., Length Less Shaft 12-1/4 In.
