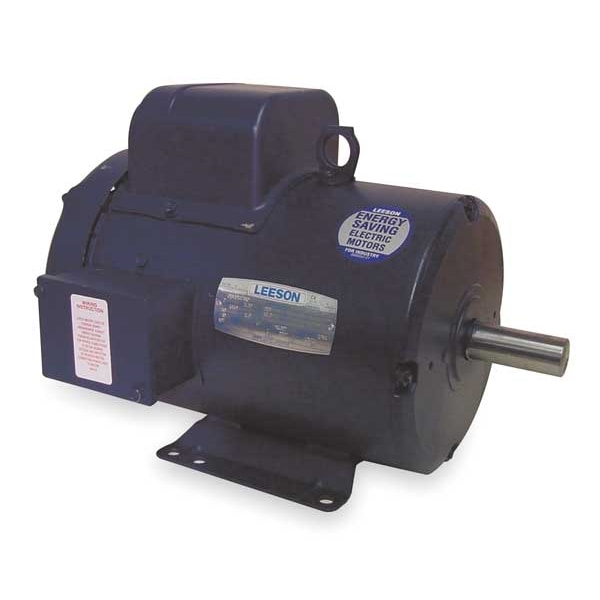

Leeson 50 Hz Motor, 2 HP, 1440,220 V, 182T, TEFC 131556.00 - main

50 Hz Motor, 2 HP, 1440,220 V, 182T, TEFC

  • Mfr # 131556.00

  • Zoro # G1572557

product price: $1,041.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
182T
Phase
Single
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
131556.00
Zoro #
G1572557
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Length Less Shaft
12 3/4 in
Overall Length
15 7/16 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
182T
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
Rigid Base
Motor Shaft Rotation
CW/CCW
Item
50 Hz Motor
RPM Range
1,401-1,500
Ambient Temperature
40 Degrees C
No. of Speeds
1
Ins. Class
F
Voltage Compatibility
110/220-230V AC, 110/220V AC, 220V AC
Motor Application
General Purpose
Motor Service Factor
1
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Hz
50 Hz
Motor Bearings
Ball
Nominal Efficiency
72 %
Max. Ambient Temp.
40 Degrees C
Usable @ 208V
Not Usable at 208V
Standards
CE Certified, CSA Certified, UL Listed
Service Factor @ 50Hz
1
Usable @ 200V
Not Usable at 200V
RPM @ 50Hz
1,440 RPM
Duty Cycle
Continuous
HP @ 50Hz
2 hp
Weight
98 lb
Voltage @ 50Hz
220V AC
Motor Frame Material
Steel
Full Load Amps @ 50Hz
11.2 A
NEMA Design
None

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps Not Applicable, 182T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
