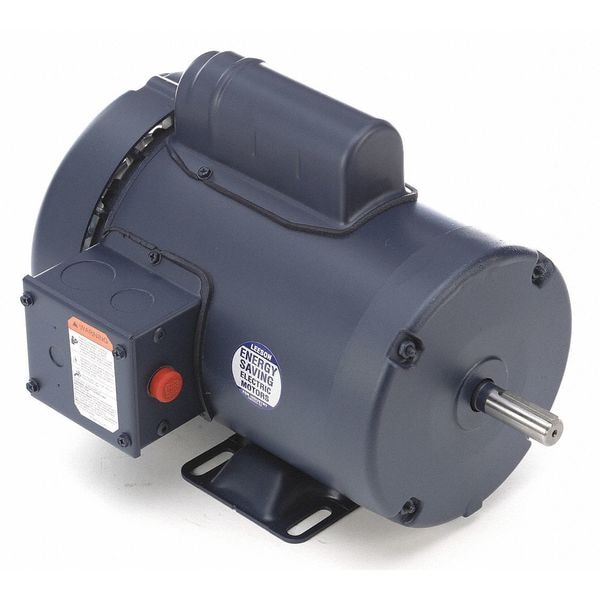

50 Hz Motor, 1 HP, 1425,110/220 V, 56, TEFC

  • Mfr # 113911.00

  • Zoro # G1021334

product price:
$
693.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
Manual
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
113911.00
Zoro #
G1021334
UPC #
691720012765
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Length Less Shaft
10 3/4 in
Shaft Length
1 7/8 in
Overall Length
12 1/2 in
Frame Size
56
Wire Rope Length
12 1/2 in
Shaft Diameter
5/8 in

Details

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
56
Phase
Single
Motor Thermal Protection
Manual
Motor Mounting Type
Rigid Base
Full Load Amps
12.8/6.4 A
Item
50 Hz Motor
Motor Mounting Position
Horizontal
RPM Range
1,401-1,500
Ambient Temperature
40 Degrees C
No. of Speeds
1
Motor Application
General Purpose
Voltage Compatibility
110/220-230V AC, 110/220V AC
Motor Service Factor
1
Motor Shaft Design
Keyed
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Ins. Class
F
Hz
50 Hz
Nominal Efficiency
73 %
Max. Ambient Temp.
40 Degrees C
Standards
CE Certified, CSA Certified, UL Listed
Weight
34 lb
Voltage @ 50Hz
110/220V AC
RPM @ 50Hz
1,425 RPM
Usable @ 208V
Not Usable at 208V
Service Factor @ 50Hz
1
Duty Cycle
Continuous
Full Load Amps @ 50Hz
12.8/6.4 A
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1 hp
NEMA Design
None
Motor Frame Material
Steel
Efficiency Rating
Standard Efficiency (IE1)
Nameplate Service Factor @ 50 Hz
1
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
1,425 RPM
Nameplate Voltage @ 50 Hz
110/220V AC
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Horsepower @ 50 Hz
1 hp
Product Type
50 Hz Motor
Full Load Current @ 60 Hz
12.8/6.4 A
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
12.8/6.4 A
Mounting Position
Horizontal
Frequency
50 Hz
Application
General Purpose
Bearing Type
Ball
Insulation Class
F

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 12.8/6.4 A, 56 Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
