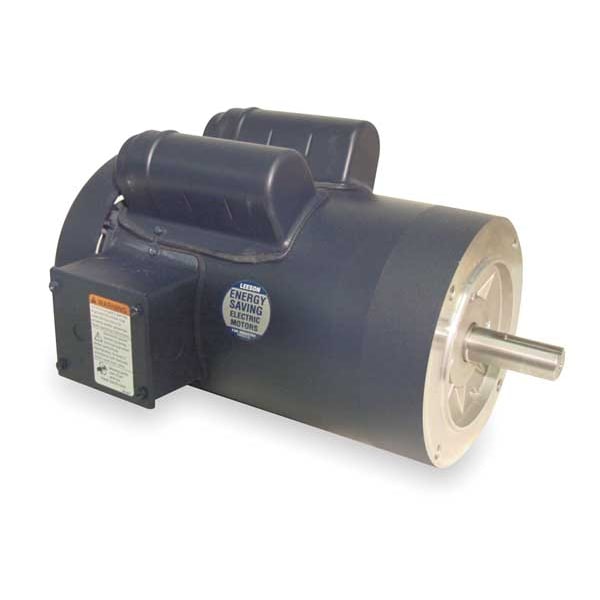

Leeson 50 Hz Mtr, 2 HP, 2850,110/220 V, 145TC, TEFC 120990.00 - main

50 Hz Mtr, 2 HP, 2850,110/220 V, 145TC, TEFC

  • Mfr # 120990.00

  • Zoro # G1446697

product price: $601.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
145TC
Phase
Single
Motor Thermal Protection
None
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
120990.00
Zoro #
G1446697
UPC #
691720016428
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Length Less Shaft
11 3/4 in
Overall Length
13 15/16 in

Details

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Totally Enclosed Fan Cooled
Frame
145TC
Phase
Single
Motor Thermal Protection
None
Motor Mounting Type
C-Face, Rigid Base
Full Load Amps
17.2/8.6 A
RPM Range
1,801-3,000
Voltage Compatibility
110/220-230V AC, 110/220V AC
Ins. Class
F
Motor Bearings
Ball
Motor Shaft Design
Keyed
Motor Mounting Position
Horizontal
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Footnotes
24
Motor Application
General Purpose
No. of Speeds
1
Ambient Temperature
40 Degrees C
Hz
50 Hz
Item
50 Hz Motor
Nominal Efficiency
84 %
Max. Ambient Temp.
40 Degrees C
Service Factor @ 50Hz
1.15
Usable @ 200V
Not Usable at 200V
Voltage @ 50Hz
110/220V AC
NEMA Design
None
Usable @ 208V
Not Usable at 208V
Full Load Amps @ 50Hz
17.2/8.6 A
Standards
CE Certified, CSA Certified, UL Listed
Duty Cycle
Continuous
Weight
50 lb
RPM @ 50Hz
2,850 RPM
HP @ 50Hz
2 hp
Motor Frame Material
Steel

Description

50 Hz Motor, Single Phase, Motor Design Capacitor-Start/Run, Not Applicable HP, Nameplate RPM Not Applicable, No. of Speeds 1, Voltage Not Applicable, Full Load Amps 17.2/8.6 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design None, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
