Shop DAYTON

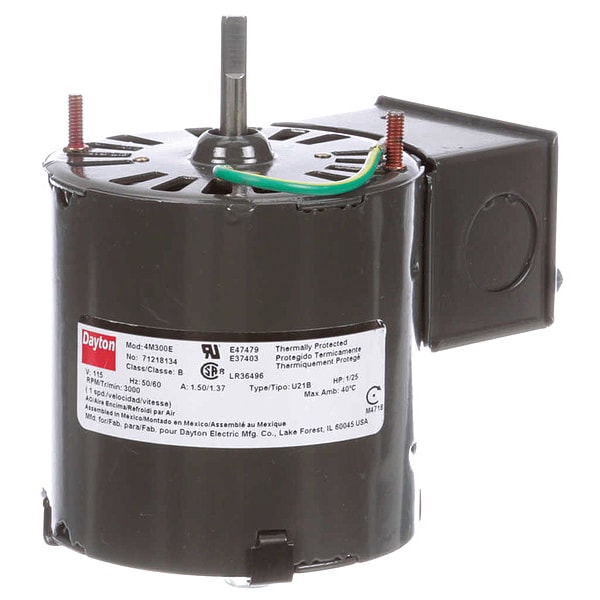

HVAC Motor, 1/25 HP, 3000 rpm, 115V, 3.3

  • Mfr # 71218134M

  • Zoro # G1908584

product price:
$
64.19
/ea

Key Features

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71218134M
Zoro #
G1908584
UPC #
-
Country of Origin
Mexico

Dimensions

Body Dia.
3 5/16 in
Length Less Shaft
3 5/16 in
Cord Length
6 in
Shaft Dia.
1/4 in
Shaft Length
1 1/4 in
Shaft Diameter
1/4 in
Overall Length
4 19/32 in
Body Diameter
3.3 in
Frame Size
3.3
Wire Rope Length
4 19/32 in
Length
4 19/32 in

Details

Voltage
115V AC
Nameplate RPM
3,000
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/25
RPM Range
1,801-3,000
Full Load Amps
1.37 A
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Application
HVAC/R
Includes
5 cu. in. Junction Box
Motor Shaft Design
Flat
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Max. Ambient Temp.
40 Degrees C
Motor Design
Shaded Pole
Frame
3.3
Motor Sub Application
Direct Drive Fan/Blower
Mounting Stud Location
2/Shaft End
Ins. Class
B
Item
HVAC Motor
Motor Service Factor
1
Mounting Pattern
2 7/8
Motor Bearings
Sleeve
Duty
Continuous
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
Standards
CSA Certified, UL Recognized (E37403)
Stud/Base Mtg. Pattern
2-7/8 in
No. of Speeds
1
Number of Shafts
1
Motor Shaft Rotation
CWSE
Footnotes
6, 51
Hz
60/50 Hz
Phase
Single
Capacitor Required
Capacitor Not Required
HP @ 50Hz
1/25
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Voltage @ 50Hz
115V AC
Service Factor @ 50Hz
1
RPM @ 50Hz
3,000 RPM
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Full Load Amps @ 50Hz
1.37 A
Mounting Stud Pattern
2 7/8 in
Type
OEM Replacement
Mounting
Stud
Full Load Current @ 60 Hz
1.37 A
Drive Type
Direct Drive
Nameplate Service Factor @ 50 Hz
1
Insulation Class
B
Nameplate RPM @ 50 Hz
3,000 RPM
Shaft Design
Flat
Full Load Current @ 50 Hz
1.37 A
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
40 Degrees C
Nameplate Horsepower @ 50 Hz
1/25 hp
Wattage
30 W
Nameplate Voltage @ 50 Hz
115V AC
Motor Enclosure Type
Open Air Over
Sub Application
General Purpose
Frequency
60/50 Hz
Bearing Type
Sleeve
Frame Material
Steel

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/25 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 115V AC, 1.37 A Full Load Amps, 3.3 Frame, Output Watts 30 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
