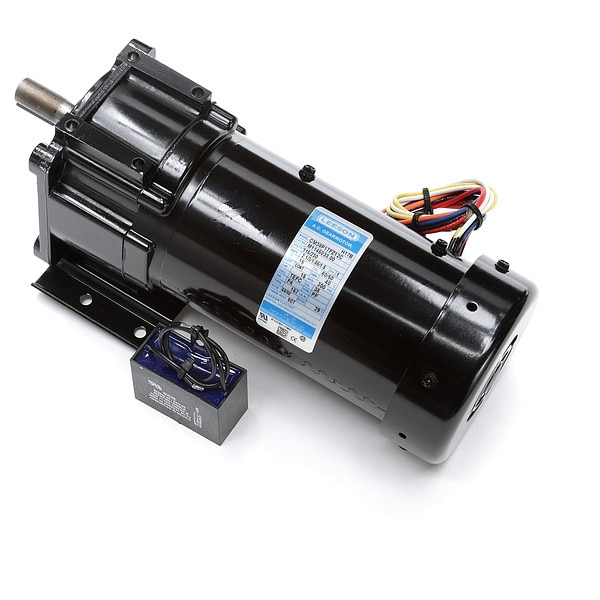

AC Gearmotor, 157 in-lb Max. Torque, 60 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

Mfr # M1145033.00
Zoro # G805687250

812.99

Free Shipping & Returns

Key Features

Gearmotor Voltage

115/230V AC

Gearmotor Phase

Single

Gearmotor Type

AC Gearmotor

Max. Torque

157 in-lb

Gearmotor Shaft Type

Hollow with Left Output Flange

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: M1145033.00
Zoro #: G805687250
UPC #: 691720092163
Country of Origin: Mexico

Dimensions

Length Less Shaft: 10.63 in
Overall Length: 12.13 in
Dimension X: 3.5 in
Shaft Dia. (Dimension U): 5/8 in
Mount Hole Center-to-Center Length: 3.38 in
Keyway Depth: 3/16 in
Keyway Width: 19/100 in
Output Shaft Height: 3.5 in
Overall Width: 4.06 in
Output Shaft Diameter: 5/8 in
Mount Hole Center-to-Center Width: 3.38 in
Output Shaft Length: 1 1/2 in
Overall Height: 5.13 in
Keyway Length: 1 in
Wire Rope Length: 12.13 in
Length: 12.13 in

Details

Item: AC Gearmotor
Gearmotor Voltage: 115/230V AC
Gearmotor Phase: Single
Gearmotor Type: AC Gearmotor
Max. Torque: 157 in-lb
Gearmotor Shaft Type: Hollow with Left Output Flange
Gearmotor Shaft Orientation: Parallel
Nameplate RPM: 60 RPM
Gearmotor Enclosure: Totally Enclosed Fan-Cooled
Gearmotor Rotation: CW/CCW
Gearmotor Mounting Position: Horizontal or Vertical Shaft Down
Full Load Amps: 2.1 A
Standards: CE, CSA Certified, UL
Input HP: 1/6 hp
Gear Ratio: 29:1
Max. Ambient Temp.: 40 Degrees C
Phase: Single
Rotation: CCW
Service Factor: 1
Gear Material: Steel
Overhung Load: 268 lb
Gears: Helical Gear
Bearings: Needle
Reversible Shaft Output: Yes
Shaft Orientation: Parallel
Insulation Class: F
Motor Type: Permanent Split Capacitor
Duty Cycle: Continuous
Lubrication: Semi-Fluid Grease
Gear Type: Helical (1st Stage)
Thermal Protection: None
Capacitor Required: Yes
Hz: 50/60 Hz
Application: Power Transmission
Mounting Orientation: Horizontal, Vertical with Shaft Down
Nameplate Speed: 60 RPM
Full Load Current: 2.1/1.1 A
Output Location: Left Hand
Mount Type: Horizontal or Vertical Shaft Down
Maximum Torque: 157 in-lb
Output Shaft Type: Keyed
Overhung Load Capacity: 268 lb
Input Horsepower: 0.167 hp
Operating Voltage: 115V AC
Motor Insulation Class: F
Frequency: 50 Hz, 60 Hz
Maximum Ambient Temperature: 104 Degrees F
Includes Capacitor: Capacitor Included
Motor Enclosure: Totally Enclosed Fan-Cooled
Maximum Output Speed: 60 RPM
Features: Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available
Number of Output Shafts: 1
Bearing Type: Needle
Motor Duty Class: Continuous
For Location: Outdoor
Inverter Rated: No
Number of Stages: 1
Brake Type: None
Shaft Material: Steel
Keyway Type: Square
Motor Frame Designation: 38

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 60 RPM, Maximum Torque 157 in-lb, Overhung Load Capacity 268 lb, Rotation CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Inverter Rated No, Gear Ratio 29:1, Brake Type None, Output Location Left Hand, Shaft Orientation Parallel, Output Shaft Type Keyed
