  6. AC Gearmotor, 391 lb-in Max. Torque, 16 RPM Nameplate RPM, 115V Voltage, Single Phase
No Product Image Available

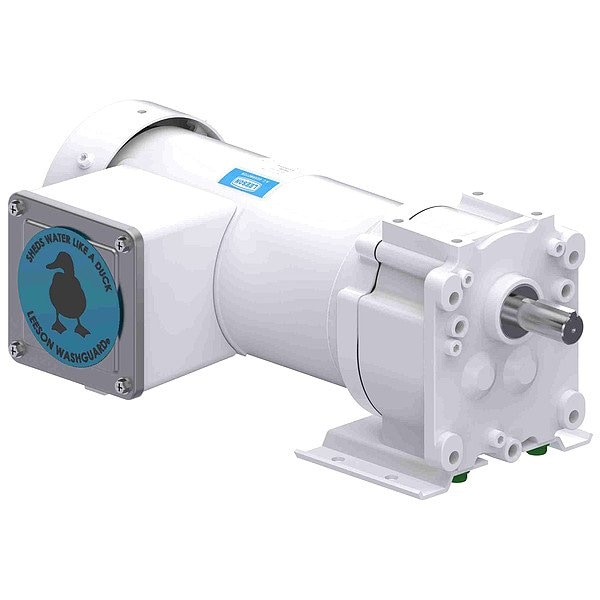

AC Gearmotor, 391 lb-in Max. Torque, 16 RPM Nameplate RPM, 115V Voltage, Single Phase

  • Mfr # M1145138.00

  • Zoro # G604946725

product price:  $976.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
391 lb-in
Gearmotor Shaft Type
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M1145138.00
Zoro #
G604946725
UPC #
691720000212
Country of Origin
United States

Dimensions

Length Less Shaft
11.63 in
Keyway Size Type
0.19" Square x 1"
Shaft Length (Dimension V)
1.5 in
Shaft Dia. (Dimension U)
5/8 in
Overall Length
13.13 in
Overall Height
5.13 in
Output Shaft Diameter
5/8 in
Keyway Depth
1 in
Overall Width
4.06 in
Keyway Width
15/79 in
Mount Hole Center-to-Center Width
4 in
Mount Hole Center-to-Center Length
1.5 in
Output Shaft Height
3.5 in
Output Shaft Length
1 1/2 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115V
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
391 lb-in
Gearmotor Shaft Type
Single
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
16 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CCW
Gearmotor Brake Type
None
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
2.1/1.1
Standards
CE, CSA, UL
Input HP
4/25 hp
Gear Ratio
103:1
Phase
Single
Lubrication
Semi-Fluid Grease
Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Shaft Orientation
Parallel
Gear Type
In-line
Motor Type
Permanent Split Capacitor
Insulation Class
F
Duty Cycle
Continuous
Bearings
Needle
Gear Material
Steel
Capacitor Required
Yes
Hz
60 Hz
Service Factor
1
Rotation
CW/CCW
Overhung Load
399 lb
Gears
Steel
Starting Torque
391 in-lb
Motor Insulation Class
F
Frequency
60 Hz
Brake Type
None
Mount Type
Horizontal or Vertical Shaft Down
Mounting Orientation
Horizontal, Vertical with Shaft Down
Input Horsepower
0.16 hp
Features
Precision machined in-line steel gears.Permanent split capacitor design rated for 115/230 VAC 60/50 HZ input. Lubrication is permanent semi-fluid grease, reducing possibility of leakage. Output shafts have needle bearings to handle high load capacities
Overhung Load Capacity
399 lb
Full Load Current
2.1/1.1 A
Motor Duty Class
Continuous
Includes Capacitor
Capacitor Included
Maximum Torque
391 in-lb
Keyway Type
Square
Number of Output Shafts
1
Motor Enclosure
Totally Enclosed Fan-Cooled
Nameplate Speed
16 RPM
Maximum Ambient Temperature
104 Degrees F
Operating Voltage
115/230V AC
Maximum Output Speed
16 RPM
Bearing Type
Needle

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 16 RPM, Maximum Torque 391 in-lb, Overhung Load Capacity 399 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115/230V AC, Gear Ratio 103:1, Brake Type None, Shaft Orientation Parallel, Includes Capacitor Capacitor Included, Motor Insulation Class F, Motor Duty Class Continuous
