Shop LEESON

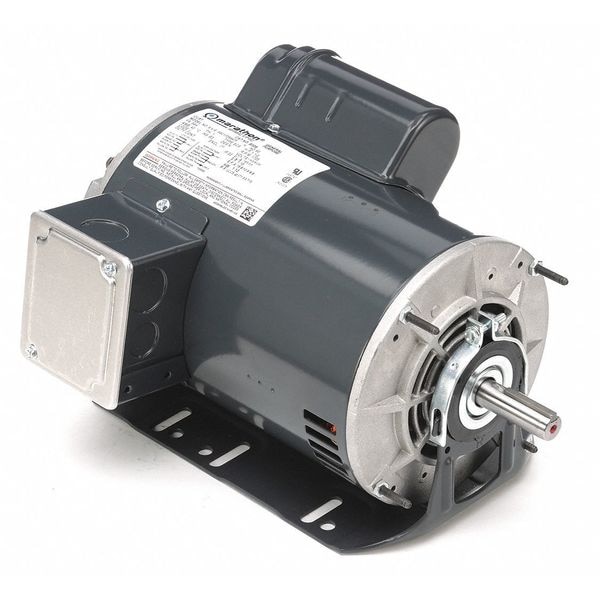

Capacitor-Start General Purpose Motor, 1 1/2 hp HP, 115/208-230V AC Voltage, 56H Frame

  • Mfr # 056C17D5347

  • Zoro # G7504892

product price:  $502.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
056C17D5347
Zoro #
G7504892
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 7/8 in
Length Less Shaft
10 15/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
2 in
Frame Size
56H
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Cradle Base
HP
1 1/2 hp
RPM Range
1,701-1,800
Voltage
115/208-230V AC
Frame
56H
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
Motor Application
General Purpose
Motor Sub Application
Direct Drive Fan/Blower
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start
Standards
CSA, UL Recognized
Max. Ambient Temp.
40 Degrees C
Inverter Rated
Not Inverter Rated
Nominal Efficiency
77 %
Full Load Amps
18.0/9.3-9.0 A
Motor Bearings
Ball
Ins. Class
B
Duty
Continuous
Phase
Single
RPM Group
1701-1800
Hz
60 Hz
Frame Material
Steel
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Weight
41 lb
Capacitor Required
Yes
Inverter Rating
Not Inverter Rated
Insulation Class
B
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 60 Hz
18.0/9.3-9.0 A
Shaft Design
Keyed
Sub Application
Direct Drive Fan/Blower
Efficiency Rating
Standard Efficiency (IE1)
Application
General Purpose
Product Type
General Purpose Motor
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Number of Speeds
1
Manufacturers Warranty
1 yr

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 18.0/9.3-9.0 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base
