Shop LEESON

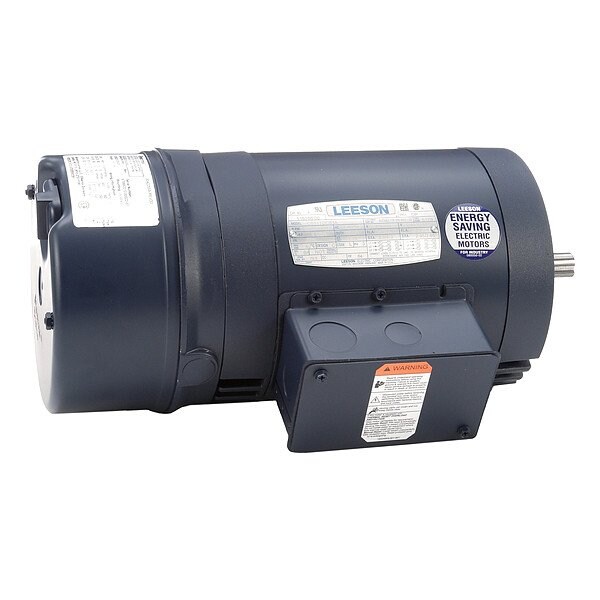

BrakeMotor, 1-1/2hp, 1725RPM, 230/460VAC

  • Mfr # 116766.00

  • Zoro # G011930362

product price:
$
1,761.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2 hp
Nameplate RPM
1,725 RPM
Shaft Dia.
5/8 in
Voltage
230/460V AC
Frame
56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
116766.00
Zoro #
G011930362
UPC #
691720348772
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Overall Length
14 1/2 in
Shaft Length
1 7/8 in
Length Less Shaft
12 11/16 in
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
14 1/2 in
Length
14 1/2 in

Details

HP
1 1/2 hp
Nameplate RPM
1,725 RPM
Item
Brake Motor
Voltage
230/460V AC
Frame
56C
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
Conduit Box Position
F1
Motor Shaft Design
Keyed
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Motor Mounting Type
C-Face
Voltage @ 50Hz
190/380V AC
Voltage Compatibility
230V AC, 460V AC
Weight
43 lb
HP @ 50Hz
1 hp
Service Factor @ 50Hz
1.15
RPM @ 50Hz
1,425 RPM
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Motor Service Factor
1.15
Motor Mounting Position
Horizontal
Motor Shaft Rotation
CW/CCW
No. of Speeds
1
Full Load Amps @ 50Hz
5.6 A
Motor Application
General Purpose
Standards
CSA, UL Listed
Hz
60/50 Hz
Duty Cycle
Continuous
Full Load Amps
5.6 A
Motor Thermal Protection
None
Usable @ 200V
Not Usable at 200V
RPM Range
1,701-1,800
Ins. Class
B
Phase
Three
Nominal Efficiency
75.5 %
Brake Rating
10 ft-lb
Inverter Rating
Not Inverter Rated
Inverter Rated
Not Inverter Rated
Nameplate Horsepower @ 50 Hz
1 hp
Nameplate RPM @ 50 Hz
1,425 RPM
Number of Speeds
1
Frame Material
Steel
Brake Torque
10 ft-lb
Insulation Class
B
Full Load Current @ 60 Hz
5.6 A
Product Type
Brake Motor
Bearing Type
Ball
Application
General Purpose
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Frequency
60/50 Hz
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 50 Hz
5.6 A
Nameplate Service Factor @ 50 Hz
1.15
Efficiency Rating
Standard Efficiency (IE1)

Description

Brake Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 230/460V AC, 5.6 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type C-Face, Motor Mounting Position Horizontal
