Dayton

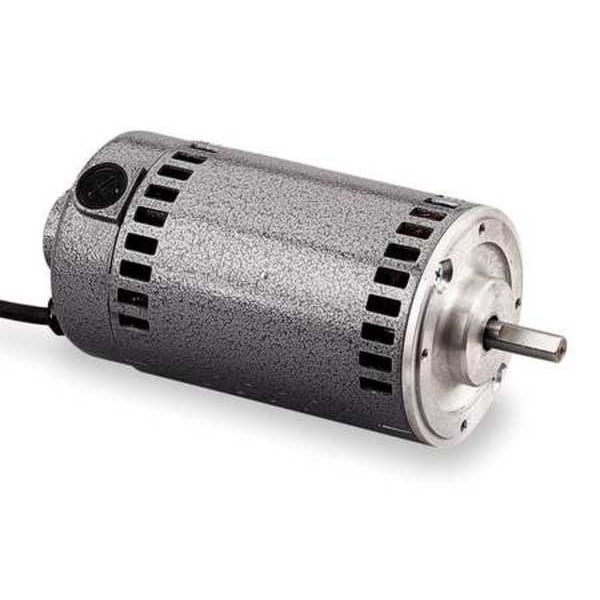

Universal AC/DC Mtr, 1hp, 10,000 RPM, 115V

Hover or click to zoom Tap to zoom
Key Features
  • HP: 1
  • Nameplate RPM: 10,000
  • Shaft Dia.: 7/16 in
  • O.C. Mounting: 3 1/4 x 3 1/4 in
  • Mounting Holes: (4) #10-32
  • Item: Universal AC/DC Motor
  • Voltage: 115V AC
  • Frame: Non-Standard
See full product details
$357.92
Join our email list for 10% off your first order
For 10% Off Your First Order
Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns 30-Day Returns
125 U.S.-Based Customer Service Agents 125 U.S.-Based Customer Service Agents

Specifications

Dimensions

Shaft Length 1 1/4 in
Overall Length 9 in
Length Less Shaft 9 5/8 in

Details

HP 1
Nameplate RPM 10,000
Shaft Dia. 7/16 in
O.C. Mounting 3 1/4 x 3 1/4 in
Mounting Holes (4) #10-32
Item Universal AC/DC Motor
Voltage 115V AC
Frame Non-Standard
Motor Design Universal AC/DC
Motor Enclosure Design Open
Motor Service Factor 1
Average Brush Life 300 hr
Standards UL Recognized
Motor Bearings Ball
Voltage Compatibility 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Max. Ambient Temp. 40 Degrees C
RPM Range Over 3,600
Application Used in Appliances, Power Tools, Outdoor Equipment, Food Processing Equipment, Gearmotors, Blowers, Pumps and Other Applications Where High Horsepower Output and Small Size are Required
Motor Application Universal AC/DC Motor
Ins. Class A
Motor Thermal Protection None

Description

Universal AC/DC Motor, Single Phase, Motor Design Universal AC/DC, 1 HP, Nameplate RPM 10,000, No. of Speeds 1, 115V AC Voltage, Full Load Amps 12.1, Non-Standard Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open, Motor Mounting Type Face, Motor Mounting Position All Angle, Finish Unfinished, Shaft Dia. 7/16 in, Shaft Length 1 1/4 in
