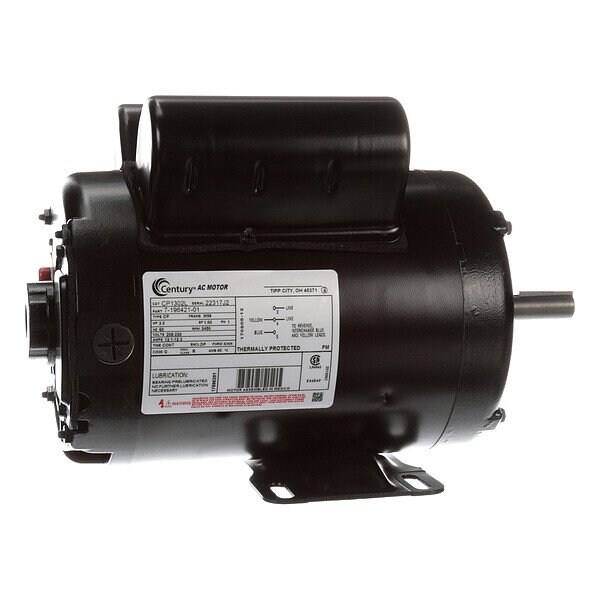

Air Compressor Motor, 56, Manual

  • Mfr # CP1302L

  • Zoro # G811930685

product price:
$
729.99
/ea
Free Shipping & Returns

Key Features

HP
3 hp
Nameplate RPM
3,450 RPM
Shaft Dia.
5/8 in
Voltage
208-230V AC
Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CP1302L
Zoro #
G811930685
UPC #
786674017215
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
12 11/16 in
Length Less Shaft
10 3/4 in
Shaft Length
1 15/16 in
Wire Rope Length
12 11/16 in

Details

HP
3 hp
Nameplate RPM
3,450 RPM
Item
Air Compressor Motor
Voltage
208-230V AC
Frame
56
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Drip Proof
RPM Range
3,001-3,600
Full Load Amps
13.1 to 12.3 A
Motor Mounting Position
Horizontal
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CW/CCW
Ins. Class
B
Motor Thermal Protection
Manual
Motor Mounting Type
Rigid Base
Motor Application
Air Compressor
Hz
60 Hz
Voltage Compatibility
208V AC, 230V AC
Motor Service Factor
1
Motor Bearings
Ball
Standards
CSA, UL Listed
Phase
Single
Duty Cycle
Continuous
Motor Shaft Design
Keyed
Usable @ 208V
Usable at 208V
Weight
33 lb
No. of Speeds
1
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V

Description

Air Compressor Motor, Single Phase, Motor Design Capacitor-Start, 3 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 13.1 to 12.3 A, 56 Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel, Shaft Dia. 5/8 in
